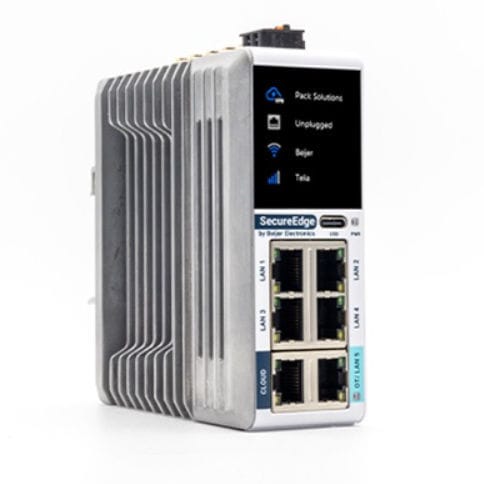

Integration network security appliance SecureEdge pro Eth

DIN rail-mountedfirewallVPN

Remote access, networking device and edge computing Easy to set-up Secure Remote Access Edge Gateway with Router and Built in firewall Secure CloudVPN Server with Web VNC and other value added features AES - 256 - bank level security, with Built-in TPM 2.0 Chip Isolated OT port to separate factory network from the internet, enhancing cybersecurity. Supports edge computing with the ability to deploy custom or pre-built Docker apps directly on the gateway and 32GB eMMC storage (5GB user space) with PCIe SSD M.2 expansion option. Supports major industrial protocols: OPC-UA, Modbus TCP, Siemens S7, MELSEC, BACnet/IP, MQTT. Local NTP server and API for integration with PLCs and third-party systems. Facts Certifications General - CE, FCC, IEC 62443-4-1, IEC 62443-4-2 (in progress) System Encryption - AES-256-CBC with SHA512, HTTPS with TLS 1.2 or higher IO - 1 x digital input, Optocoupler. Current limited to <5mA, Voltage 0 – 29V 7-29V is interpreted as ‘1’, 0-3V is ‘0’ Software Configurable I/O state (allow/prevent VPN connections) Memory - 4GB DDR4 Power Input voltage - 12-24 VDC +/- 20% Encryption - AES-256-CBC with SHA512, HTTPS with TLS 1.2 or higher Mechanical Housing material - Cast aluminium heat sink, ABS plastic Mounting option - DIN rail attachment Size - 111 x 111 x 45 mm Weight - ~0.556 kg Accessories Included accessories - DIN rail attachment
