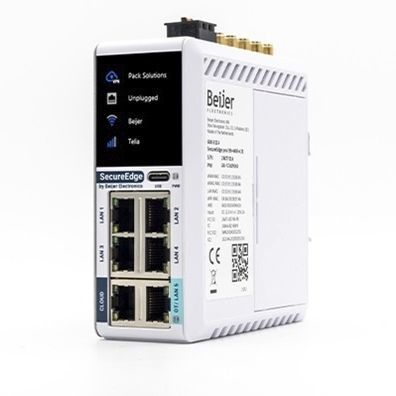

Built-in network security appliance SecureEdge pro Eth+WiFi+LTE

DIN railfor integrationfirewall

Remote access, networking device and edge computing Easy to set-up Secure Remote Access Edge Gateway with Router and Built in firewall Secure CloudVPN Server with Web VNC and other value added features AES - 256 - bank level security, with Built-in TPM 2.0 Chip Isolated OT port to separate factory network from the internet, enhancing cybersecurity. Supports edge computing with the ability to deploy custom or pre-built Docker apps directly on the gateway and 32GB eMMC storage (5GB user space) with PCIe SSD M.2 expansion option. Supports major industrial protocols: OPC-UA, Modbus TCP, Siemens S7, MELSEC, BACnet/IP, MQTT. Local NTP server and API for integration with PLCs and third-party systems. Facts Certifications General - CE, FCC, IEC 62443-4-1, IEC 62443-4-2 (in progress) System Encryption - AES-256-CBC with SHA512, HTTPS with TLS 1.2 or higher IO - 1 x digital input, Optocoupler. Current limited to <5mA, Voltage 0 – 29V 7-29V is interpreted as ‘1’, 0-3V is ‘0’ Software Configurable I/O state (allow/prevent VPN connections) Memory - 4GB DDR4 Interface Antenna - 2 x LTE network antenna connector, SMA Female (Main, DIV) 2 x WiFi Antenna, RP-SMA Female 1 x GNSS LAN - 4+1 RJ45 1Gbps SIM - eSIM*, NanoSIM (4FF) USB - USB 3.0 (Type C) WAN - 1x RJ45 1Gbps Power Input voltage - 12-24 VDC +/- 20% Encryption - AES-256-CBC with SHA512, HTTPS with TLS 1.2 or higher Frequency channels - 2.4 Ghz, 5 Ghz WLAN type - IEEE 802.11bgnac (WiFi 5) Mechanical Housing material - Cast aluminium heat sink, ABS plastic Mounting option - DIN rail attachment Size - 111 x 111 x 45 mm Weight - ~0.556 kg Environmental Operating temperature - -20°C to +55°C Sealing - IP20 Storage temperature - -20°C to +55°C Accessories
