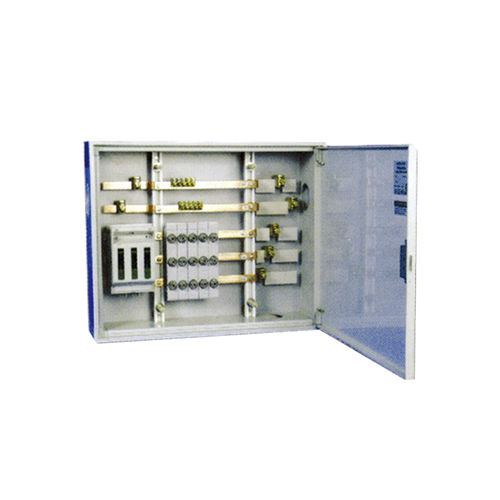

Metal electric cabinet LDF-0.4 series

compositeoutdoorcompact

Overview LDF - 0.4 series low voltage sectionalising cabinet adopts composite material for enclosure and busbar insulation material; the cabinet can be freely configured under customers' requirements. It can be used as switchboard, sectionaliser, metering box, control box, or power supply box. The cabinet is compact, easily assembled; and all components are shielded and insulated. Therefore, it is touchable and no hazardous of discharging caused fire. Description Product Features Composite material made enclosure • Board structure, easily assembled, cost effective. • The life expectancy of composite material made enclosure is expected to be 8 to 10 times longer than traditional metal enclosure.  • The enclosure is suitable for installation of different electrical components and meters. • The enclosure has no convex edge and be able to endure high impact resistance. It is suitable for outdoor application. Fuse isolator • High breaking capacity 80 kA, single pole live operation available, secure and reliable. • Modular structure, easy assembly, convenient operation. • Except conductive material, all made of environmentally friendly material. • Easy to change the fuse current level (under maximum allowed current level). Parameters Standard IEC/EN 60 947-3 Fuse in accordance with EN 60 947-3 Application Type AC 23B/400V AC 22B/500V            AC 21B/690V AC 22B/400V Rated Short-circuit Protection Function (With fuse) 80kA 400V Rated Withstand Voltage 6kV Rated Busbar Working Current 160、250、400、630、1250,1600A IP Rating of Primary Equipments 100、125、160、250、400A
