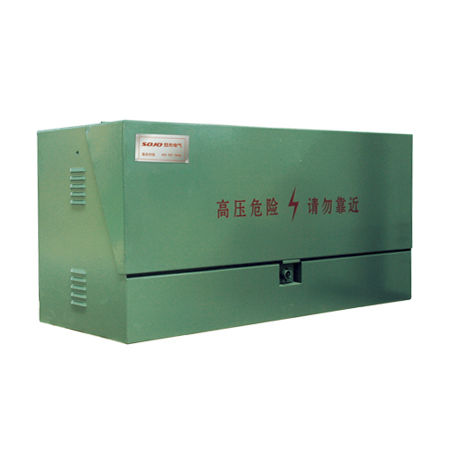

Distribution electric cabinet DF series

floor-mountedcompactIP67

Overview Sectionalising cabinet is applied at the cables jointing points for power distribution purpose. The connection method is simple, convenient, complete insulated, fully shielded, compact, light-weighted, oil free, maintenancefree, corrosion resistant, easy to be earthed, flexible to earth and nonexposed live parts. It provides solutions for cables' Tee connection and connections of multiple incoming and outgoing cables. It is applied for urban street, skyscraper buildings, construction sites, large enterprises, and other distribution networks, especially suitable for rebuilding of city's power distribution projects. Description Connection Method Deadbreak junctions are mounted to cabinet and cable connectors connected to deadbreak junctions. Product Features • Fully shielded and insulated, safe and reliable.  • Corrosion-resistant, maintenance-free, not affected by harsh ambient conditions. • Maximum 8 number of incoming and outgoing circuits in one cabinet. • Live plugging and unplugging under emergency. • Small size, compact structure, easy to install, convenient to operate. Parameters Rated Voltage 12kV Rated Current 630A Rated Short-time Withstand Current 40kV 1min Power Frequency Withstand Voltage 42kV Lightning Impulse Withstand Voltage 125kV 15min DC Withstand Voltage 78kV IP Rating of Primary Equipments IP67
