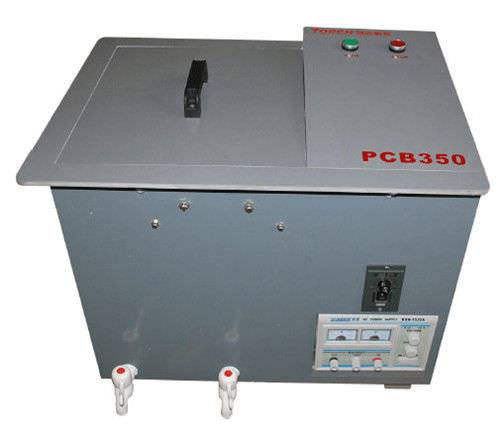

【Summary】:
This equipment is used to tin on the surface of PCB and enhance welding, at the same time it can protect
PCB to not be etching.
【Process】:
After electroplating and solidifying copper, put the copper board into tinning machine, there are 2 purposes:
1. tin on the PCB and holes to finish plating PCB;2. enhance linking stably and welding effect after tinning.
Steps:
1 fix the board which has been electroplated and solidified, and then put it into tinning liquor, the pothook
links rod of cathode.
2 please adjust current according to size of board. The standard of current is : 2A/(dm)2, please calculate area of double side if it is double side board.
3 take board out after 15 minutes.
4 Please use liquor exit to let liquor out.
5 Speed timing can adjust sway speed which is new design to control speed.
Add: If the user had any special request, please arrange with us.
