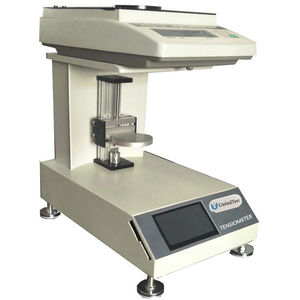

Digital tensiometer TEN202 ringfor surfactantdetergent
Add to favorites
Compare this product
Characteristics
- Type
- digital, ring
- Applications
- for surfactant, detergent, for wetting agents, for cleaning baths, for coating baths, ink
- Function
- for surface and interfacial tension measurement
- Configuration
- portable
- Options
- computer-controlled, automatic, laboratory
Description
★Mainly consist in platinum ring, platinum torsional wire, differential sensor and data processing system etc.
★Easy to operate, high accuracy, auto calculate the liquid surface or interface actual tension value; automatic calculate actual average tension value.
★LCD display the load; Measuring tray auto up and down; Automatic one key adjust Zero point function;
With peak value holding; Automatic stop when the liquid film break;
★ With peaking value holding indication function; with tray up and down indication function; with auto zeroing indication function.
ModelTEN202
Measuring methodMotorized automatic
Display typeLCD screen
PrinterMicro printer
Measuring range0~200mN/m
Min. dial scale0.01mN/m
Platinum ring radius9.55mm
Platinum torsion wire0.3mm
Platinum ring perimeter length60mm
Sample tray stroke25mm
Glass cup volume60ml
Sample tray speed15 mm/min±2 mm/min
Dimensions400*250*350mm
Weight22kg
Power220V, 50HZ / 110V,60Hz
