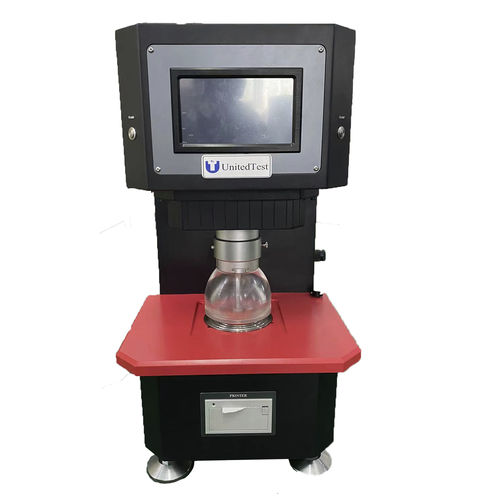

Burst testing testing machine UT4016

automaticfor plasticsfor paper

Specification: UT4016 hydraulic type Automatic Fabric Bursting Strength Tester is used test burst strength in a variety of textiles, nonwovens, paper, cardboard, plastics and medical products. Conform to standard: ISO 13938.1, Textiles — Bursting properties of fabrics — Part 1: Hydraulic method for determination of bursting strength and bursting distension. FZ/T 60019、FZ/T 01030、ASTM D3786、BS 4768、WOOLMARK TM 29、WSP 30.1、JIS L 1018.6.17; GB/T 7742.1-2005 Specification: Working mode: Touching screen, data printing Measuring range: 2.0Mpa Resolution: 0.001KPa Elastic diaphragm thickness: ≤2mm Measuring accuracy: 0.2%FS Sample size: Standard with delivery is 50cm² Optional: 7.3 cm²（Φ30.5mm）, 10 cm²（Φ35.7mm）, 50 cm²（Φ79.8mm）, 100 cm²（Φ112.8mm） Maximum expansion: 75mm Pressure rising rate: 20-600ml/min
