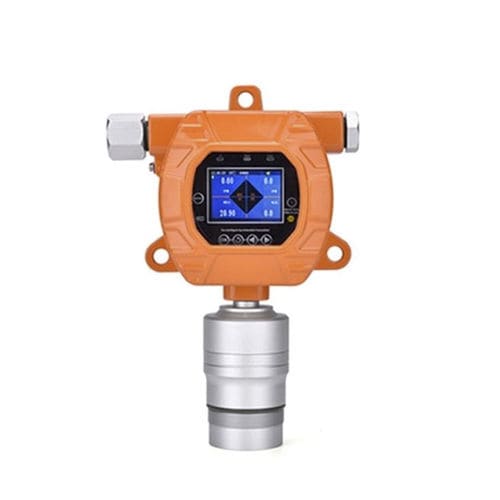

Temperature monitoring device MIC600-P4

pressurehumiditygas

MIC600-P4 gas monitor real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored; it is supported to use the local host to view, and delete data, and upload the data via RS485 interface to the computer for data analysis or printing. Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is optional configuration, real-time storage and fixed time storage are supported, or only the data of the alarm concentration will be stored; it is supported to use the local host to view, and delete data, and upload the data via RS485 interface to the computer for data analysis or printing. The optional high-temperature high-humidity pretreatment system will be possible to detect the smoke gas at the temperature of 1300 ℃. The detection for the gases at other temperatures can be customized. Simultaneously display the concentrations of multipletypes of gases, repeatedly display the concentration of single-channel gases in large font, and display the realtime curve. 2.5-inch high-definition color screen, display the information such as real-time concentration, alarm, time, temperature, humidity, storage, and so on; the menu interface adopted high definition simulation graphics to display the function name of each menu.
