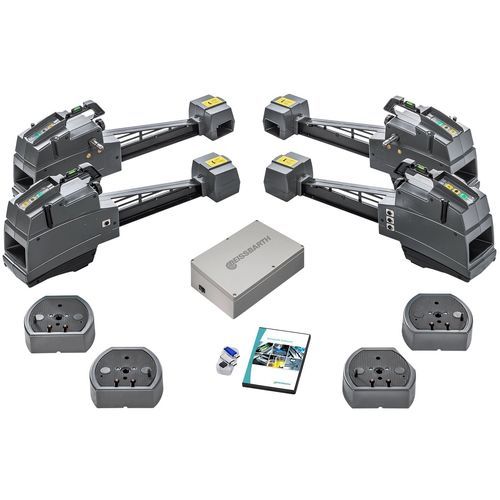

CCD wheel aligner 1690310071

for carwith automatic camera

Perfectly integrated into ADAS calibration and head light testing: The space in front of the lift can be used for ADAS calibration boards and head light tester Permanent self-check and precise ADAS calibration jig orientation to the thrust vehicle's thrust angle No need for extra cameras, cables, or clamps required for ADAS calibration Best in class: +/- 2 minute accuracy: 360° measurement field for permanent self-check and adjustment of system to movement and vibrations Rolling runout compensation eliminates time-consuming raising of vehicle and single-wheel compensation No calibration to a specific lift allows a measurement on any wheel alignment bay Wireless data transfer and integrated battery enable full mobility and allow the use of Windows tablets or Laptops Intelligent and space-saving charging solution that can be mounted on any wall Quality made in Germany Operating temperature - 5 - 40 °C Storage temperature - -20 - 60 °C Packaging length - 850 mm Packaging width - 550 mm Packaging height - 820 mm Gross weight - 42 kg Relative humidity, use - (40 °C) 10 - 90 Weight - 27 kg
