3D wheel aligner Q.LIGN START

for car

Q.Lign Start

Overview

• 3D wheel alignment system Q.Lign Start for professional workshop use.
• Onboard computing replaces an external PC trolley, with tablet display and direct streaming capability.
• Compact setup compatible with above-ground and inground lifts and any service bay.
• Runs on the Q.Lign software platform with an intuitive, consistent workflow.

Unlimited Space - Fits Any Bay, Any Lift

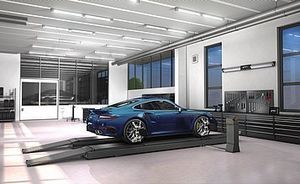

• Space-saving installation on all lift types, above-ground and inground.
• Integrated computing avoids the need for a mobile PC trolley.

Unlimited Productivity

• Continuous cabled power option and ready-to-use configuration for high-throughput shops.
• Designed for reliable, uninterrupted measurement cycles.

Unlimited Speed - Q.Lign Software Platform

• Same intuitive workflow across Q.Lign products to reduce operator training time.
• Stream-to-X: display software output directly on TV, PC, laptop or smartphone.
• Seamless workshop integration: access, share and print reports from anywhere in the shop.

Wheel Alignment Made Simple

• Quickly identify vehicles requiring collision repair.
• Measure with any target on any wheel position to save time and reduce user errors.
• Real-time sensor syncing ensures correct steering-wheel centring on first pass.

Putting the customer first

• Clear, easy-to-understand printouts suited for customers and insurers.
• Theme-based reports (e.g. insurance) instead of one-size-fits-all outputs.
• Vehicle data supplied from OEMs via Key Card or database updates.

Scope of delivery

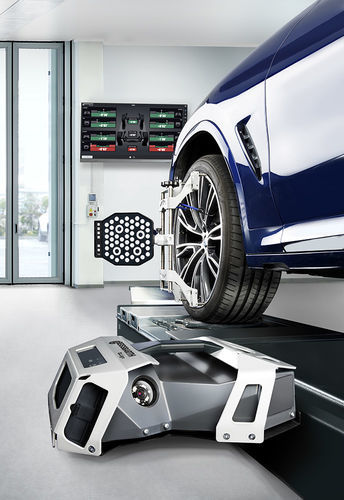

• 2x Q.Lign Start sensor heads
• Display module for direct streaming to TV, PC, laptop or tablet
• Tablet
• Power supply & cables
• 4x targets with auto-identification
• Q.Lign Software (without ADAS functionality)
• Key Card for international vehicle specs
• Lift adaption
• Steering wheel and brake lock

Please note: This scope of delivery does not include any turntables or wheel clamps; these must be ordered or supplied separately.

Accessories & options (selection)

• Printer for Beissbarth trolleys
• Magnetic clamp sets (various diameters and bolt circles)
• Steering wheel holder, brake lock
• Filling pieces for aluminium turntables
• Storage kits and wall brackets for clamps
• RaceScales precision turntables with load cells
• Q.Grip adapter sets and MultiFit clamps
• Trolleys with 27" monitor, wall boards and lift adaptations
• Batteries, emergency power box and charging stations for mobile operation

Technical Data (table)
Electrical connection: 100 - 230 V | 50 - 60 Hz | 1 ph
Packaging length: 1080 mm
Packaging width: 960 mm
Packaging height: 900 mm
Gross weight: 100 kg
Measuring system: 3D
Weight: 80 kg
Packaging unit: 1 Palette(n)
Data transmission type: wireless
Power consumption: 65 W
Accumulator power (electric charge): —
Min. tyre size: —
Max. tyre size: —
Max. wheel base: 5000 mm
Load capacity per turntable: —

Technical specifications

• Model: Q.Lign Start
• Measuring principle: 3D wheel alignment
• Electrical connection: 100–230 V, 50–60 Hz, single phase
• Power consumption: 65 W
• Operating weight (system): approx. 80 kg; gross packed weight: 100 kg
• Packaging dimensions (L×W×H): 1080 × 960 × 900 mm
• Max. measurable wheel base: 5000 mm
• Data transmission: wireless
• Delivered with: sensor heads, display module, tablet, power supply & cables, 4 targets with auto-identification, Q.Lign software (no ADAS), Key Card for vehicle specs, lift adaption, steering wheel & brake lock
• Optional accessories: turntables, wheel clamps, magnetic clamps, Q.Grip adapters, RaceScales, batteries, emergency power box and charging stations, various OEM-specific quick clamps and adapters
• Brand: Beissbarth
