CCD wheel aligner Q.Lign 360 START

for car

Product overview

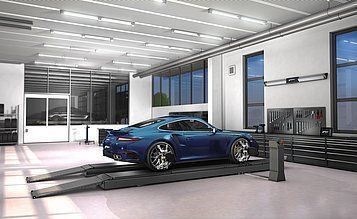

Big power for small spaces: Q.Lign 360 START bridges the gap between compact, space-saving CCD systems and full-scale 3D aligners by delivering true 3D performance in a footprint that fits smaller workshops. The system is wall-mountable, tablet-operated and turns a standard service bay into an advanced 3D alignment zone.

Design & installation

• Wall-mounted design: Zero floor space required; frees the area around the lift for unobstructed work.
• True 360-degree mobility: No metal beams around the lift — technicians have safe, full access around the vehicle.
• Absolute lift versatility: Runout compensation can be completed at floor level; mechanical adjustments possible with lift fully raised. Optical tracking (not mechanical).
• Flexible installation: Designed for lifts positioned 1.8–3.3 m from the wall; optional extendable wall mount available to reach up to 4.17 m (4170 mm) from center of turntable to wall.

Operational efficiency & hardware

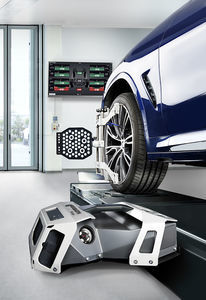

• Always ready for action: Mount targets and start measuring immediately in any lift position.
• Tablet-controlled workflows: Run the entire alignment process from a mobile tablet — no trolley/column/PC/printer required.
• Universal MultiFit clamps: Fast, self-centering setup fitting 13"–22" rims without extra accessories.
• Fast ROI: Faster setup and results to turn wheel alignment into a profitable add-on service.

Software & reporting

• Stream-to-X: Access software on TV, PC, laptop, tablet or smartphone.
• Accelerated workflow: High-performance software speeds up the alignment process.
• Intuitive operation: Guided workflows for technicians of different experience levels.
• Clear, professional reports: Concise printouts for customer transparency.
• Connected reports: PDF reports accessible across the network and shareable with customers.

Scope of delivery

• Camera beam with 4 cameras
• Q.Lign display module
• 4x targets with AutoID
• Tablet
• Brake lock and steering wheel lock
• Powerbox for power supply
• Key Card for international vehicle specs

Please note: This scope of delivery does not include turntables or wheel clamps; these must be ordered or supplied separately.

Technical specifications

• Electrical connection: 90-264V | 1Ph | 47-63Hz
• Measuring system: 3D with fixed measuring beam
• Packaging unit: 1 pallet
• Space requirement width: 2595 mm
• Data transmission type: wireless
• Distance camera - center of turntable: 1800 - 3300 mm
• Clearance front posts of lift (min.): 2800 mm
• Display size: 10 in
• Power consumption: 45 W
• Sensor count: 4 pcs
• Wheel base: 1750 - 4600 mm
• Set-up height: 2800 mm
