Calibration equipment for automotive applications 8 900 381 056

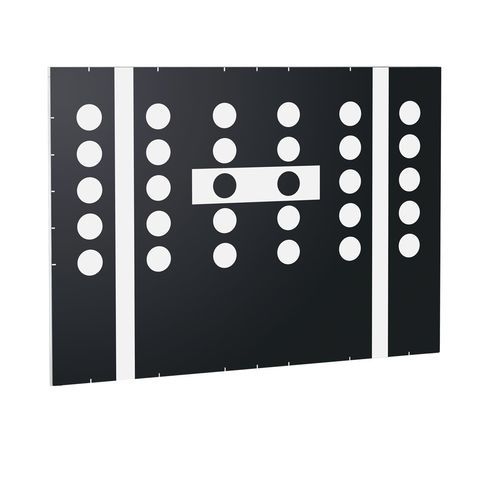

2-in-1 XXL calibration board with the pattern for calibrating front camera systems on VW Group vehicles. The newly reworked version in combination with Q.DAS allows users to also calibrate radar systems on all vehicles that require an even reflective service in front of the radar sensor. This enables radar calibration also on vehicles outside the VW Group. Single and double radar systems can be calibrated in the lowest height position, without any setup times or rotation of the target board. The height is infinitely adjustable to cover both low positioned radar systems as well as high positioned camera systems with only one calibration board. The purchase of the XXL calibration board does not require any further ACC reflector mirrors (8 900 381 150) for radar calibration! The required tilting positions are also possible with the XXL calibration board. Advantages: Camera calibration for VW Group vehicles and multi-brand OEM radar calibration in one No setup times, no rotation For single and double radars For passenger cars and transporter (very high transporters may only work in combination with Q.DAS Pro) Integrated tilting mechanism with 3 positions High quality materials and finishing with flat surface guarantee
