Car ADAS calibration system Q.DAS

for commercial vehicles

Product overview

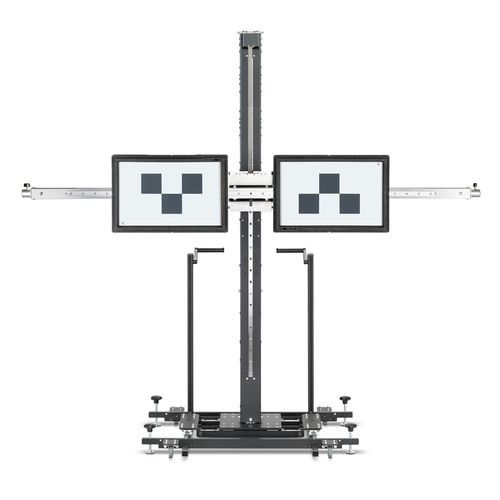

Q.DAS is a modular solution for the calibration of forward-facing, safety-relevant radar, camera and LIDAR systems. Configure the system depending on calibration volume, budget and available workshop space. Q.DAS is designed for cars and light commercial vehicles and enables OEM-compliant ADAS calibration in combination with wheel alignment.

Key product details

• Safety-relevant driver assistance systems: Radar and camera
• Vehicle class: Cars and light commercial vehicles
• Calibration volume in the workshop: high
• Height adjustment: Motorized up to 2050 mm
• Works with all camera calibration targets: Yes
• Supports eTargets: Yes
• Distance adjustment without re-leveling: 200 mm
• Center offset adjustment without re-leveling: 200 mm

Advantages of the Q.DAS system
1. Digital instead of analog

• Camera-based positioning via live display
• No plumb bobs or measuring tapes required
• Full control over entire calibration
• Direct specs instead of manual value transfer (requires active Q.mApp license and Q.Lign aligner)

2. Wheel alignment and ADAS calibration as one process

• No retooling
• No moving of measuring devices
• Permanently ready for use
• Guided instructions for setup and positioning
• Automatic compensation of different installation heights
• Meets highest accuracy requirements of OEMs

3. Modular calibration solution for every workshop

• Free choice of calibration targets and radar mirrors
• Configuration according to calibration volume, budget and space conditions
• No fixed commitment to only one diagnostic tester
• Integrated X-Y slider minimizes leveling
• Motorized height adjustment

Scope of deliveries

• 1x Modular Q.DAS frame/base, without targets or radar mirrors (base frame without panels or mirrors)
• 1x Q.mApp software (Android) including license for activation (1 year)
• 1x Digital Bluetooth laser distance gauge

Notes

• Costs apply: Requires an active Q.mApp license in combination with a Q.Lign wheel aligner for some functions
• Designed to work as an OEM-compliant solution in conjunction with wheel alignment workflows

Technical characteristics / specifications

• Packaging length: 2350 mm
• Packaging width: 450 mm
• Packaging height: 530 mm
• Gross weight (packaged): 187 kg
• Net weight: 157 kg
• Motorized height adjustment: up to 2050 mm
• Distance adjustment without re-leveling: 200 mm
• Center offset adjustment without re-leveling: 200 mm
• Compatible with all camera calibration targets
• Supports eTargets
• Intended use: Forward-facing ADAS calibration (radar, camera, LIDAR)
