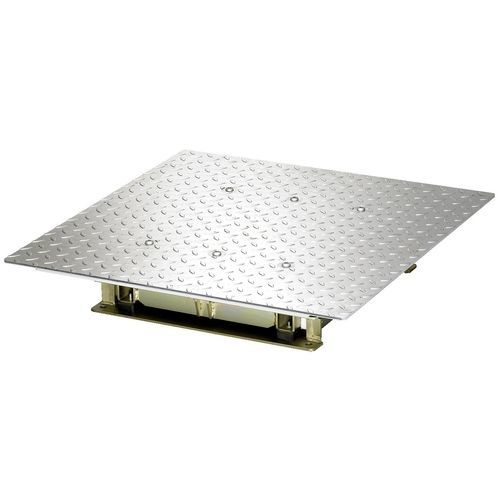

Detector for the automotive industry 1 691 650 001

inspectionremote

To detect defects and wear in the suspension systems of double-track vehicles | up to 4 t axle load The geometry of the axle to be tested is displaced by moving the test plates of the GST 6xx. This makes it possible to detect impermissible play at joints and wheel bearings or to localise cracks at stub axles for example. The GST 651 is only to be used for the inspection of double-track vehicles with a maximum axle load of 4000 kg. Remote control over control lamp with control buttons (Ø 60 mm, length 205 mm, incl. Halogen bulb with reflector, GU5,3 / 38°, 12 V / 20 W) Scope of delivery: Test plates (2x) Control module incl. control lamp Hydraulic unit Hydraulic line fitting set Fitting set Hydraulic fluid (Type of fluid DIN 51524 VG 22)
