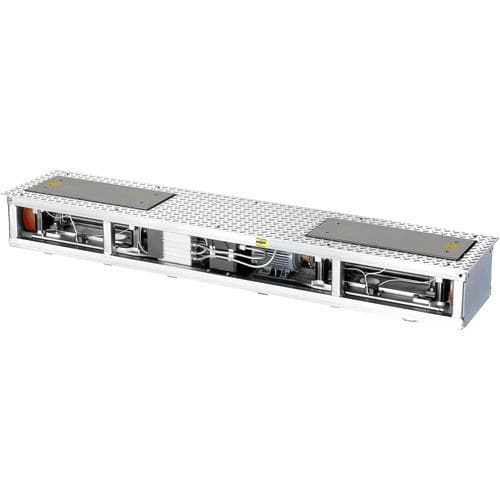

Car test lane QS.4

roller

Product Description
Fully automatic suspension tester that detects technical defects in shock absorbers, wheel suspension, wheel bearings and tires. Designed for workshop and inspection applications where automated, repeatable suspension diagnostics are required.

Supply volume

• QS.4 suspension tester
• Connecting cable

Downloads

• Product data sheet (PDF) available

Technical specifications

• Operating temperature: -10 - 50 °C
• Electrical connection: 400 V | 50 - 60 Hz
• Storage temperature: -10 - 50 °C
• Gross weight: 343 kg
• Length: 440 mm
• Height: 280 mm
• Width: 2360 mm
• Measuring system: DMS
• Weight: 313 kg
• Packing: 2420 x 820 x 700 mm
• Max. axle load testable: 2000 kg
• Relative humidity max.: 85 %
• Fuse protection: 3 x 20 A
• Max. drive-over load: 4000 kg
• Max. sound pressure level: 70 dB(A)
• Test width min. - max.: 820 - 2200 mm
• Test frequency: < 25 Hz
• Motor power: 2 x 2,5 kW
• Engine speed: 1360 U/min
• Supply lead: 5 x 2,5 mm²
• Test principle: Erregermethode (EUSAMA-Prinzip)
• Test plate length: 690 mm
• Test plate width: 273 mm
• Measuring range, max. stroke: 6 mm
