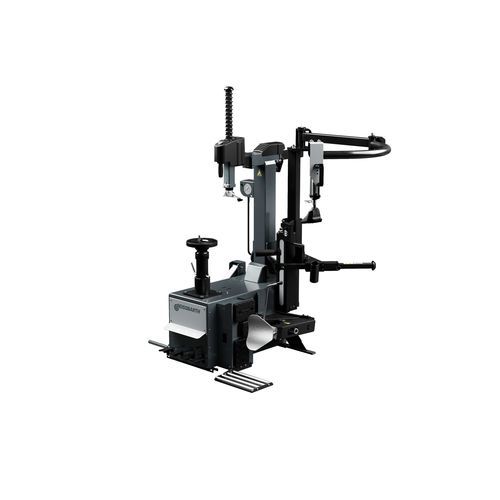

Car tire changer INFINITY

semi-automatichorizontalvertical

Overview
Safe and efficient tyre mounting for rim diameters up to 30".

Center clamping with clamping flange

• High concentricity
• Prevention of scratches or damage to the rim edge
• Uniform clamping force
• Suitable for UHP, run-flat and large-diameter rims
• Mechanically height-adjustable for "Reverse Mount"

Robust mounting column and head

• Automatic tilt via pedal
• Fast vertical and horizontal movement of the mounting arm
• Pneumatic locking

Wheel lift included

• Assists lifting and lowering of wheels
• Reduces operator strain
• Supports wheel weights up to 80 kg

TCX.PRO: entry-level assist tower, fully equipped for stiff UHP and run-flat tyres

• Pneumatic bead-press roller holds the bead in the drop center
• Pneumatic assist arm presses the bead into the drop center
• Lower bead loosener disc for demounting stiff and wide tyres
• Rim pressing cone for easier external clamping

High-rigidity construction

• Full-metal pedals
• Powerful horizontal arm
• Robust metal front cover

Full control with four pedals

• Pedal control for rotation, bead breaker blade, tilt function and wheel lift
• Removable pedal unit for easier maintenance

Powerful side bead breaker blade

• Fast bead loosening
• Suitable for tyre widths up to 15"
• Three-way adjustable blade
• Pedal-controlled operation
• Anti-slip rubber protection

Scope of delivery

• INFINITY tyre changer
• Integrated wheel lift
• Pneumatic assist arm TCX.PRO2.5

Technical Data
Electrical connection: 3x400 V
Clamping tower height: 670 mm
Max. wheel diameter: 1170 mm
Max. rim diameter: 30"
Min. rim diameter: 10"
Motor power: 0.9-1.2 kW
Max. rim width: 17"
Rotation speed: 8-16 rpm
Operating pressure: 8-10 bar
Set-up width: 1260 mm
Set-up length: 1850 mm
Set-up height: 1950 mm

Characteristics / technical specifications

• Electrical connection: 3x400 V
• Clamping tower height: 670 mm
• Max. wheel diameter: 1170 mm
• Max. rim diameter: 30"
• Min. rim diameter: 10"
• Motor power: 0.9-1.2 kW
• Max. rim width: 17"
• Rotation speed: 8-16 rpm
• Operating pressure: 8-10 bar
• Set-up width: 1260 mm
• Set-up length: 1850 mm
• Set-up height: 1950 mm
