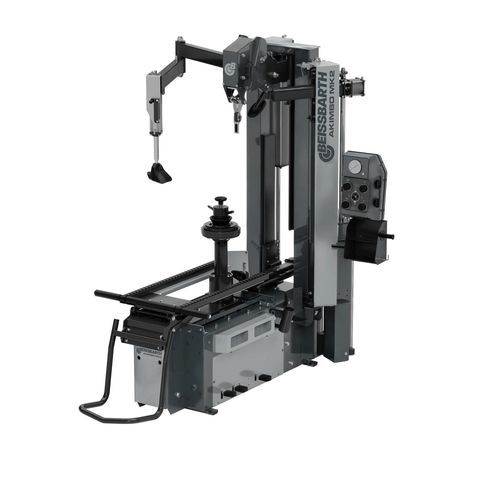

Car tire changer AKIMBO MK2

automaticleverlessvertical

Leverless Demounting Group and Center Post Locking

• No contact with the rim
• Center hole clamping ensures firm grip of wheel
• Mechanical locking pin for high durability
• Optional clamping adapters for closed center rims

Automatic Adjustment to Rim Size

• Radial positioning of tools and both bead breaker discs with rim size
• Guided by laser to prevent tools from damaging rims
• Infinitely variable from 10 to 33" rims
• Automatically moves leverless tool and both bead breaking discs out of working zone with press of a button

Maximum Rigidity by Design

• Double column design prevents torsion and flexing during operation
• Rail-guided demounting tool and bead breaker discs for maximum stability
• Industrial components for high durability
• All tools controlled pneumatically, no Bowden cables

Integrated Center Wheel Lift

• Lifts wheels directly onto center post
• No moving or lifting of heavy wheel
• Allows technician to stay on one side of the machine
• Automatically descends with release of pedal
• Supports wheels up to 80 kg

Pneumatic Bead Pushing Arm and Double Bead Breaker Discs

• Premium travelling bead pusher arm to keep bead in drop center during rotation
• Easier handling of UHP and runflat tyres
• Pusher arm mounted to column instead of tool arm to prevent tool movements when force is applied
• Bead breaker discs operated by two independent cylinders for more flexibility

Clean and Intuitive Operating Console

• Minimal buttons to reduce complexity
• Joystick for better control of leverless demounting tool
• Separate button for rim size adjustment
• Ergonomic height

BeadLock Pro included

• Prevents hard tyres from rotating on the rim
• Protects TPMS sensors during mounting phase

Upgrade Options

• Tubeless inflation kit
• Bottom mounting tool for soft tyres

WDK-Approved

• Secure mounting and demounting of UHP and runflat tyres

Scope of deliveries

• 1x BeadLock Pro
• 3x upper protection leverless tool
• 2x lower protection leverless tool
• 2x rubber protection center post
• 1x pin for reversed wheels
• 1x Brush
• 1x Plastic lever
• 1x WDK RFT/UHP bead clamp
• 230V plug

Technical Data
Length: 2000 mm
Height: 1950 mm
Width: 1300 mm
Max. wheel diameter: 1200 mm
Max. rim diameter: 33"
Min. rim diameter: 10"
Motor power: 1,5 kW
Bead breaker force: 12000 N
Max. wheel width: 380 mm
Max. wheel weight: 80 kg
Rotation speed: 0 - 18 U/min
Space requirement width: 1502 mm
Operating pressure: 8 - 10 bar

Characteristics / Technical specifications

• Model: AKIMBO MK2
• Series: WDK
• Spindle: center, no contact with rim
• Rim diameter range: 10" - 33"
• Maximum wheel diameter: 1200 mm
• Maximum wheel width: 380 mm
• Maximum supported wheel weight: 80 kg
• Motor power: 1,5 kW
• Bead breaker force: 12.000 N
• Rotation speed: 0 - 18 U/min (self-centring)
• Recommended operating pressure: 8 - 10 bar
• Construction: double-column for maximum rigidity
• Included accessories: BeadLock Pro, tool protections, bead clamp, etc.
