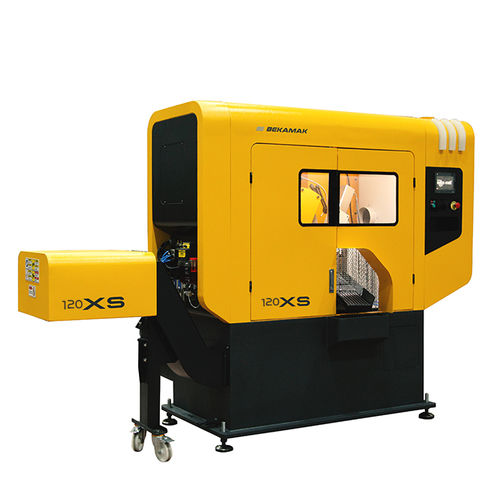

Circular saw BMDO-130XS

for steelfor stainless steelprofile

Mass production in continuous operation is done by BMDO 130 XS when producing cut-off pieces of steel and non-ferrous metals with a material cross-section up to a diameter of 130 mm. BMDO 130 XS is designed to be used with TCT circular saw blade in order to cut solid bars in high speed and excellent precise. It is also suitable for HSS blades to cut tubes. With the Standard 800mm stroke servo feeding and 6 meters automatic loader. BMDO 130 XS is perfect for large-scale production of solid bars. • BORE : 40 mm • PIN HOLES : 2/16/80 • BLADE SPEED : 40-200 m/min • SAW BLADE : 15 kW • SAW HEAD FEED : 2 kW • HYDRAULIC PUMP : 2,2 kW • COOLANT MOTOR : 0,2 kW • CHIP CONVEYOR : 0,25 kW • CUT-TO LENGTH FEED : 2 kW • POWER SUPPLY VOLTAGE : AC400V, 3 PH, 50/60 HZ • POWER REQUIREMENT : 22,14 kW • AIR PRESSURE : 5 bar / 0,5 mPa mPa • AIR FLOW RATE : 245 lt/dk • hydrolic TANK CAPACITY : 70 lt • oil tank capacity : 1,5 lt Air filter 6 Mt Material Roller Table Standard Features • Hydraulic Top Clamping • ILC Mikrospray Coolant • Hydraulic Vice • Inverter • Control Panel • Saw Blade Brush • Cover Switch • Heavy Duty Gearbox
