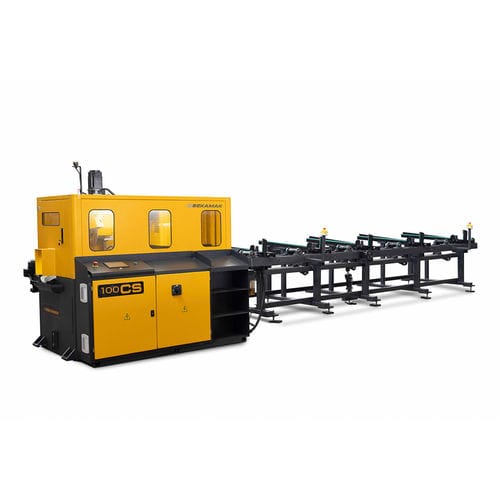

Circular saw BMDO-100CS
for non-ferrous metalsfor steelfor stainless steel

circular saw
circular saw
circular saw
circular saw
circular saw
circular saw
circular saw
circular saw
circular saw
circular saw
circular saw
circular saw
Add to favorites
Compare this product


Characteristics

Technology
circular
Treated material
for steel, for non-ferrous metals, for stainless steel
Applications
for profiles, for tubes, for bars
Other characteristics
fully-automatic, vertical, precision, electric, CE, inverter, PLC-controlled, with roller conveyor, with chip conveyor, with automatic loading
Circular saw blade diameter

Max.: 360 mm (14 in)

Min.: 260 mm (10 in)

Round piece diameter

Max.: 100 mm (4 in)

Min.: 20 mm (1 in)

Description

Performance Vertical Slide for maximum cutting power and rigidity. Standard with Speed Inverter for speeds of 20-100 m/min. Electric Servo Feeding for +/- 0.05 ~ 0.1mm Cutting Length precision (per stroke) Capacity up to 100mm in Tube and Solid Bars. Superior Gear Box design for maximum machine life and performance. Flexible Gripper Feeding + Floating Carriage allow for maximum feeding precision even in material which is not perfectly straight. Intuitive and User Friendly Interface with Touch Screen system.. Ability to program multiple cutting lengths per bar. Safety Covers for maximum operator protection and comfort. Head for ferrous material not with endless screw, but with cemented and ground helical gear for obtaining a high operating rate without any play or vibration of the saw-blade. Head with inverter allowing a continuous change of the cutting speed. Standard Features Heavy Duty Gearbox HSS Circular Saw Blade Inverterstufenlos regelbare Schnittgeschwindigkeit Hydraulic Vice Control Panel Saw Blade Brush Securty Switch
