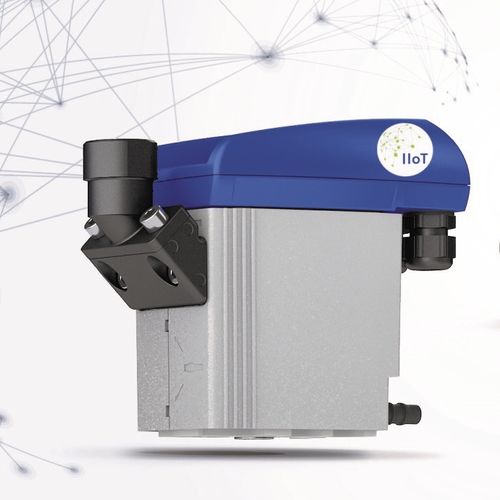

Condensate drain BEKOMAT i4.0

airautomaticelectronic

The BEKOMAT i4.0 is a fusion of proven condensate drainage and digitalization. two units available Operating pressure 0,8 - 16 bar Condensate Inlet 1 x G1/2" and 3 x G 1/2" When it comes to compressed air condensate, the BEKOMAT condensate drain from BEKO TECHNOLOGIES is considered an industry standard with more than five million installations. The robust unit discharges condensate without loss of compressed air, thus saving energy and CO2 emissions. This is made possible by the integrated capacitive sensor, the intelligent electronics for volume-adjusted condensate discharge and the pilot control of the solenoid valve. With the new BEKOMAT i4.0 generation, users additionally tap into the benefits of digitalization and increase process reliability even further. The IIOT-capable product provides continuous real-time data on the status of each individual trap for optimum transparency and monitoring. With an RS485 industrial bus interface, the BEKOMAT i4.0 condensate drain transmits its information to central control stations. Visualization of the performance and function data of all connected condensate drains in real time enables intelligent condensate management. For example, important conclusions about the entire compressed air system can be drawn from the status messages. Early warning and alarm signals allow targeted service measures to be initiated before failures occur, and maintenance can be optimally planned. The new BEKOMAT i4.0 condensate drain requires only one cable for power supply and at the same time for data transmission.
