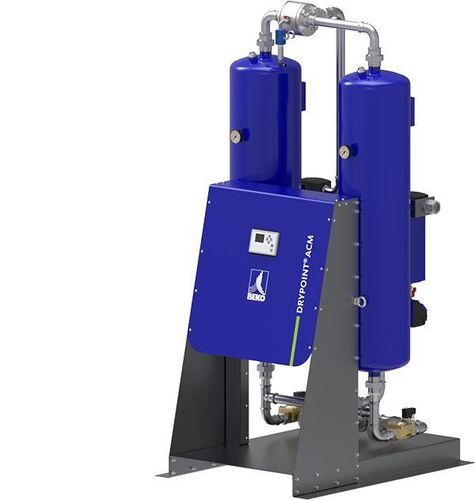

Desiccant compressed air dryer DRYPOINT® ACM series

heatless desiccantadsorptionheatless adsorption

Product overview
The DRYPOINT ACM series from BEKO TECHNOLOGIES is a medium‑sized adsorption dryer family (models 410–495) designed for reliable compressed‑air drying of medium volumetric flows (100–1000 m³/h). The dual‑tower design with counterflow regeneration offers stable pressure dew points (standard down to −40 °C, option to −70 °C) and compact dimensions for easy OEM and compressor‑package integration.

Key benefits

• Wide flow range: model variants cover 100–1000 m³/h to match production and OEM requirements.
• Energy‑efficient operation: low differential pressure and compressor synchronisation reduce operating costs.
• Integrated prefiltration and condensate management for process protection and extended component life.
• Clear process visualisation and control via DP‑ACM colour display; optional Modbus for system integration.
• Compact footprint and IP54 protection for indoor compressor skids and machine integration.

How it works / Functionality
The DRYPOINT ACM operates with two adsorption towers working alternately. Incoming compressed air passes prefiltration and condensate separation before entering the adsorption tower where the desiccant reduces moisture to the target pressure dew point. Regeneration is performed in counterflow using a partial flow of dry air; switching can be cyclic or dew‑point controlled. The design minimises purge losses and maintains stable PDP performance. The unit allows pass‑through in case of power loss to preserve process continuity.

Control and monitoring

• DP‑ACM controller with colour display showing operating mode, timers, PDP control, status, warnings and alarms.
• Standard compressor synchronisation; optional communication interfaces (e.g. Modbus) for integration into plant control systems and remote monitoring.

Areas of application

• Packaging & automation — prevents moisture‑related failures and ensures uninterrupted production.
• Mechanical engineering & machine tools — protects sensitive equipment and maintains product quality.
• Production lines with medium air volumes — energy‑optimised drying for consistent process conditions.
• OEM systems and compressor packages — compact design for machine and skid integration.

Augmented Reality & visualisation
AR and 3D visualisation options (QR code / AR model on product page) are available for virtual placement and inspection in customer environments.

Specifications table (selected models)
Header: Connection | Volumetric flow (m³/h)* | Operating pressure min./max | Inlet temperature max. | Ambient temp. min./max | Air humidity | Ambient conditions | Pressure dew point (PDP) | Power consumption | Protection class
DRYPOINT ACM 410: 1" | 100 | 4–16 bar (g) | 50 °C | +4 - 50 °C | Max. 100% at 45 °C | 0 - 2000 m NN (indoor) | Min. -40 °C (optional -70 °C) | Max. 40 W, 230 V | IP 54
DRYPOINT ACM 415: 1" | 150 | 4–16 bar (g) | 50 °C | +4 - 50 °C | Max. 100% at 45 °C | 0 - 2000 m NN (indoor) | Min. -40 °C (optional -70 °C) | Max. 40 W, 230 V | IP 54
DRYPOINT ACM 423: 1" | 225 | 4–16 bar (g) | 50 °C | +4 - 50 °C | Max. 100% at 45 °C | 0 - 2000 m NN (indoor) | Min. -40 °C (optional -70 °C) | Max. 40 W, 230 V | IP 54
DRYPOINT ACM 430: 1" | 300 | 4–16 bar (g) | 50 °C | +4 - 50 °C | Max. 100% at 45 °C | 0 - 2000 m NN (indoor) | Min. -40 °C (optional -70 °C) | Max. 40 W, 230 V | IP 54
DRYPOINT ACM 438: 1½" | 375 | 4–16 bar (g) | 50 °C | +4 - 50 °C | Max. 100% at 45 °C | 0 - 2000 m NN (indoor) | Min. -40 °C (optional -70 °C) | Max. 40 W, 230 V | IP 54
DRYPOINT ACM 455: 2" | 550 | 4–16 bar (g) | 50 °C | +4 - 50 °C | Max. 100% at 45 °C | 0 - 2000 m NN (indoor) | Min. -40 °C (optional -70 °C) | Max. 40 W, 230 V | IP 54
DRYPOINT ACM 465: 2" | 650 | 4–16 bar (g) | 50 °C | +4 - 50 °C | Max. 100% at 45 °C | 0 - 2000 m NN (indoor) | Min. -40 °C (optional -70 °C) | Max. 40 W, 230 V | IP 54
DRYPOINT ACM 485: 2" | 850 | 4–16 bar (g) | 50 °C | +4 - 50 °C | Max. 100% at 45 °C | 0 - 2000 m NN (indoor) | Min. -40 °C (optional -70 °C) | Max. 40 W, 230 V | IP 54
DRYPOINT ACM 495: 2" | 1000 | 4–16 bar (g) | 50 °C | +4 - 50 °C | Max. 100% at 45 °C | 0 - 2000 m NN (indoor) | Min. -40 °C (optional -70 °C) | Max. 40 W, 230 V | IP 54

Technical characteristics

• Brand: BEKO TECHNOLOGIES
• Designation: DRYPOINT ACM (series DRYPOINT® ACM 410–495)
• Flow range: 100–1000 m³/h (model dependent)
• Connection sizes: 1" to 2" depending on model
• Operating pressure: 4–16 bar (gauge)
• Maximum inlet temperature: 50 °C
• Ambient temperature range: +4 °C to +50 °C (indoor), altitude 0–2000 m NN
• Air humidity: up to 100% at 45 °C (process limits)
• Pressure dew point (PDP): standard down to −40 °C, optional −70 °C
• Control power consumption: typ. max. 40 W (230 V), model dependent auxiliary power
• Protection class: IP 54
• Control: DP‑ACM colour display, dew point control, timers, status/warnings/alarms; optional Modbus interface
• Design: dual‑tower adsorption with counterflow regeneration; integrated filtration and condensate management
• Applications: packaging & automation, machine building, medium‑volume production, OEM/compressor packages
