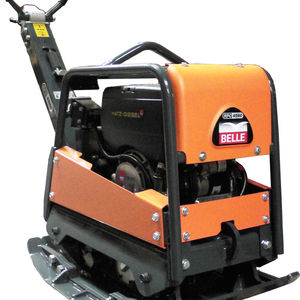

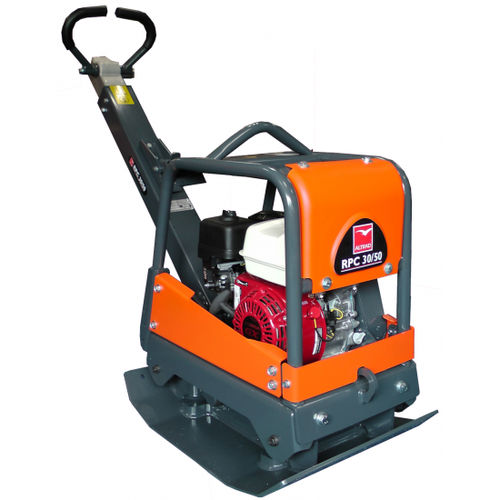

Reversible vibratory plate RPC 30 series

reversible vibratory plate
reversible vibratory plate
reversible vibratory plate
reversible vibratory plate
Add to favorites
Compare this product



Max.: 200 kg
(440.92 lb)

Min.: 160 kg
(352.74 lb)


Forward and reversible compactors with centrifugal force of 30KN. Speed and compaction depth are adjusted through hydraulic control of the eccentric element. This gives the plate smooth motion and makes it easy to operate. General plate for compaction work close to piles and concrete bases. Excellent for floor fillings, foundations, road repairs as well as backfill in pipe trenches. Advantages * Two sizes of base plate and weights to suit all kind of applications combining low weight with high compaction force * Model 30/40, base plate width 400 mm * Model 30/50, base plate width 500 mm * Compact machines with highest performance and compaction results * Petrol or diesel engine options * High frequency vibrating element 90 HZ * Compact design combined with excellent ergonomic and low hand arm vibrations which minimising operator fatigue * Specially designed operator handle for easy operating with minimum of strain * User and service friendly where all components are easily accessible * Large centrally placed lifting hook * Foldable handle which provide easy moving, minimum size for transport and storage
