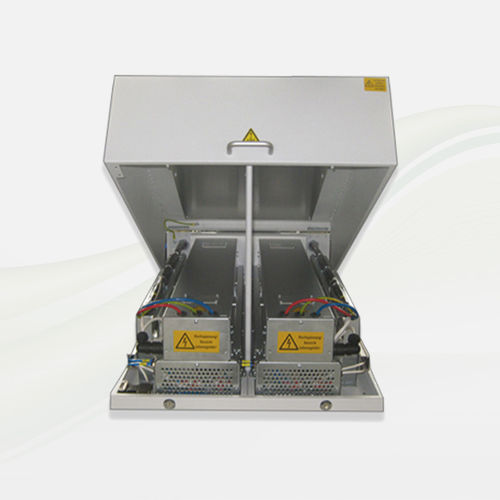

Air-cooled UV bridge

Application
Air-cooled BELTRON UV bridges are designed for installation or retrofitting in printing lines and production plants. Working width: 200 mm - 2000 mm. Available output range: 80 - 120 W/cm. Suitable for continuous production environments requiring fast UV curing.

Design
Pneumatic shutter and reduced lamp power in stand-by mode provide an energy-efficient alternative to conventional systems. BELTRON UV bridges can be equipped with PLC control for online lamp performance monitoring and process integration. Optional features include stepless power control, selective filters to reduce product heating, and quartz glass protection.

Details

• Housing designed for inline integration
• UV lamp units ready for installation
• Configurations with 1, 2 or 3 UV lamp units

UV lamp

• Lamp filling options: Hg (Mercury), Fe (Iron), Ga (Gallium)
• Stepless power regulation via electronic ballast (typ. 30–100%)

Advantages

• 60 years of experience — Made in Germany
• Innovative UV technology
• Complete, even UV curing
• Very short curing times
• Energy-saving standby and control options
• Immediate further processing possible
• High scratch resistance and glossy finish
• Durable with improved chemical resistance

Applications
Commonly used in:

• Printing industry
• Electronics industry
• Plastics industry
• Building materials
• Textile industry
• Packaging industry
• Pharmaceutical industry
• Automotive industry
• Glass industry
• Mechanical engineering

Specifications / Technical data

• Working width: 200 mm – 2000 mm
• Typical output: e.g. 80–120 W/cm (other outputs on request)
• Lamp filling: Hg (Mercury), Fe (Iron), Ga (Gallium)
• Lamp unit: complete and ready for installation, with compressed air connection
• Control cabinet: factory-wired, ready for operation
• Power control: electronic ballast, stepless (typ. 30–100%)
• Control options: compact control with LED display or PLC for online performance monitoring
• Cable: 8 m between control cabinet and UV lamp housing
• Electrical supply: 400 V / 50 Hz / 3~
• CE marking
• Options: pneumatic shutters, standby reduced lamp power, selective filters, quartz glass
