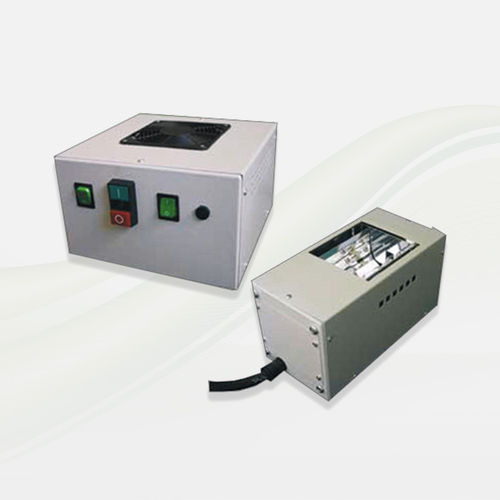

Air-cooled UV bridge mini

Application:
Complete unit ready for operation with existing conveyance equipment, comprising a UV lamp unit with pneumatic shutter system and a power unit (lamp ballast), designed for continuous operation in the small-format printing sector, i.e. paper, sheet glass, plastics, foils and metals.

Design:
The UV lamp is housed in an air-cooled lamp unit with aluminium reflector and is OZONE-FREE (length of arc 70 mm, power 120 W/cm). Power unit with mains switch, lamp on/off, full-/half-load preselection, compressed-air supply and power cable.

Details:

• Ballast (100% and 50% adjustable)
• UV lamp with or without pneumatic shutter
• Air-cooled housing with aluminium reflector

Advantages:

• 60 years quality "Made in Germany"
• Innovative UV technology
• Complete, even UV-curing
• Very short curing times
• Sustainable energy-saving systems
• Further processing possible immediately
• Highly scratch-resistant and glossy finish
• Durable and increased chemical resistance

Applications / uses:

• Printing industry
• Electronic industry
• Plastic industry
• Building materials industry
• Textile industry
• Packaging industry
• Pharmaceutical industry
• Automotive industry
• Glass industry
• Engineering

Technical specifications:

• Length of arc: 70 mm
• Power: 120 W/cm
• Ballast: 100% and 50% adjustable
• UV lamp: with or without pneumatic shutter
• Housing: air-cooled housing with aluminium reflector, ozone-free
• Power unit functions: mains switch; lamp on/off; full-/half-load preselection
• Compressed-air supply
• Power cable included
• Electrical supply: 400 V / 50 Hz / 3~
• CE mark
