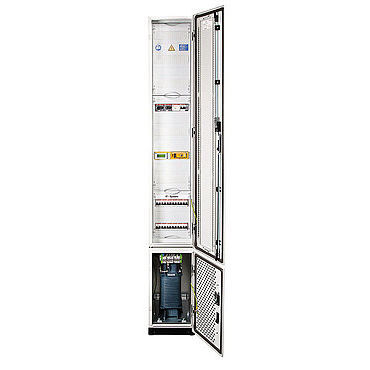

Switching electric cabinet VIT-A

controlfloor-mountedsheet steel

Series VIT-A isolated power panels are equipped with an isolation transformer as well as with a changeover and monitoring module including all necessary monitoring components as to DIN VDE 100-7010 and IEC 60364-7-710 for IT systems: Changeover device and voltage monitoring Insulation monitoring Load and temperature monitoring The secondary side of the isolation transformer is equipped with at least 6 two-pole circuit breakers. Group 2 sockets are being connected to these. In order to reduce or avoid noise disturbance by air circulating fans, waste heat is conducted by free convection. Features Automatic changeover and monitoring device ATICS® including monitoring of i.e.: - Voltage monitoring of incoming supply - Output voltage monitoring - Correct operating times - Changeover times - Insulation resistance - Load current - Transformer temperature - At least 6 two-pole circuit breakers B16A - Isolation transformer (3150 VA – 8000VA) Variable changeover time t ≤ 0.5…15 s Exchange of information by means of bus technology Connection facility for remote alarm indicator and operator panels CP9xx / CP305 Sheet steel housing as to DIN VDE 0100-710 (VDE 0100-710):2002-11, section 710.51.2.2 Designed in accordance with the requirements of applicable standards Voluntary certification of changeover device by the independent German technical service, testing and inspection organization (TÜV) Applications Group 2 medical locations
