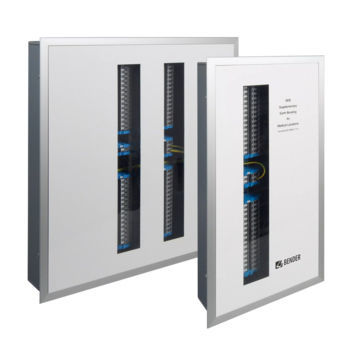

Panel-mount terminal block SEB series

busbarpush-inscrewless

Supplementary Equipotential Bonding Conductor. The supplementary equipotential bonding SEB30/SEB60 is intended for use in locations or rooms of group 1 and 2 in hospitals, clinics, medical and dental practices and in all environments, wherever they may be in which electro-medical devices with parts applied to the patient are used. According to IEC/HD 60364-7-710, an individual additional equipotential bonding must be installed between all conductive parts and the patient environment. The function of the equipotential bonding conductor is to galvanically connect all conductive parts and external conductive parts that are present in the patient environment or could penetrate it. In this way, if a conductive part malfunction occurs, all conductive parts will have the same potential and the patient, who may come into contact with two or more conductive parts, is not exposed to hazardous currents. Features Equipotential bonding of all conductive parts in a patients -environment according IEC 60364-7-710 For testing purpose each circuit can be tested without removing the actual conductor Reserved space for clamp on current meters To accommodate up to 25 mm² solid or fine stranded conductors, w/o ferrule Direct push in of the conductor, no screws Easy wiring, no crimping tools or torque wrenches for wiring required No retightening of the conductor/terminal during inspection Tin-plated bus bar, none corrosive Self-adhesive label with a wiring list for clear conductor identification Wall box with bezel frame or surface mounted enclosure
