Electric vehicle charge controller ICC1314

monitoringwith wireless connexionModbus

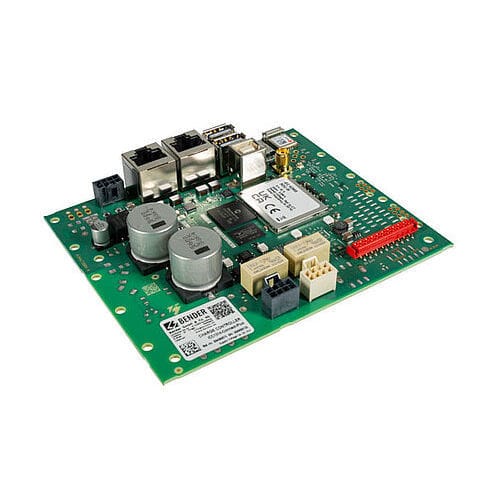

Integrated dynamic load management (DLM) Regular SW updates PLC according to ISO 15118 WiFi, Ethernet and 4G modem on board Patented 6 mA DC fault current detection Very compact PCB design (120 mm x 100 mm) The ICC1314 is a charge controller with the latest hardware design that combines many functions in a very small space. The ICC1314 is a compact version of the ICC1324 without an integrated power supply unit. The ICC1314 measures just 120 mm x 100 mm and therefore harmonises perfectly with the Power Module IPM1300 for setting up highly integrated charging stations. In conjunction with an additional ICC1314 (companion variant), it is easy to realise double charging stations. This means it can be used flexibly in charging stations and wallboxes for all application scenarios: for public, semi-public and private use. As a charge controller, the ICC1314 has Wi-Fi, a 4G modem and Ethernet connections and masters all important communication protocols such as OCPP, EEBUS, SMA SEMP and Modbus TCP. All protection functions required by standards are supported by the combination of ICC1314 and IPM1300: 6 mA DC fault current detection, monitoring of the protective conductor, overvoltage protection and rotating field detection. The integrated weld check is a function for detecting welded relay contacts and can control a disconnecting device. The ICC1314 is future-proof thanks to its support of ISO 15118 including Plug&Charge certification by Hubject. The EEBus protocol is supported for grid-friendly control in accordance with §14a EnWG.
