Automatic changeover switch ATICS®-…-DIO

manualDIN railcompact

Overview

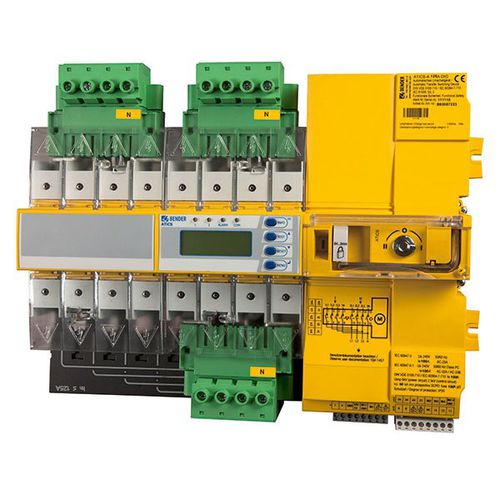

The ATICS®-…-DIO transfer switching devices perform controlled changeover between two independent power supplies. Integration of the power switching unit and the control electronics in a single compact device reduces switchgear space, simplifies wiring and reduces potential fault sources. The product is designed according to functional safety guidelines (SIL 2).

Service & maintenance
Plug-in connectors on all connection leads and the optional bypass switch enable testing, repair or replacement during ongoing operation without interrupting the power supply. This supports continuous availability and reduces service-related downtime.

Features

• Space-saving installation and retrofit: all-in-one design combining switch-disconnector and control electronics
• Available in 2-pole and 4-pole versions with rated currents from AC 63 A to AC 160 A
• Functional safety SIL 2; certification by TÜV SÜD
• Manual operation on the device and mechanical interlock
• Plug connectors and optional bypass switch for uninterrupted maintenance
• Communication and parameterisation options for monitoring and service

Applications

• Redundant supply switching for data centres, industrial installations and medical locations (group 2) where continuous, reliable power is required even in fault conditions

Variants (selection)
2-pole
ATICS-2-63A-DIO | 2-pole | AC 63 A | 1 x STW3, bridge, connectors, terminal cover | B92057212
ATICS-2-80A-DIO | 2-pole | AC 80 A | 1 x STW3, bridge, connectors, terminal cover | B92057213
ATICS-BP-2-63A-SET | Bypass switch set | AC 63 A | Bridge, terminal cover, auxiliary contacts, LEDs green/red | B92057252
ATICS-BP-2-80A-SET | Bypass switch set | AC 80 A | Bridge, terminal cover, auxiliary contacts, LEDs green/red | B92057253

4-pole
ATICS-4-80A-DIO | 4-pole | AC 80 A | 4 x STW3, bridge, connectors, terminal cover | B92057222
ATICS-4-125A-DIO | 4-pole | AC 125 A | 4 x STW4, bridge, connectors, terminal cover | B92057223
ATICS-4-160A-DIO | 4-pole | AC 160 A | 4 x STW4, bridge, terminal cover | B92057224
ATICS-BP-4-80A-SET | Bypass switch set | AC 80 A | Bridge, terminal cover, auxiliary contacts, LEDs green/red | B92057260
ATICS-BP-4-125A-SET | Bypass switch set | AC 125 A | Bridge, terminal cover, auxiliary contacts, LEDs green/red | B92057262
ATICS-BP-4-160A-SET | Bypass switch set | AC 160 A | Bridge, terminal cover, auxiliary contacts, LEDs green/red | B92057264

Optional accessories
STW3 | Measuring current transformer (short-circuit monitoring) for ATICS® < 100 A | B98021000
STW4 | Measuring current transformer (short-circuit monitoring) for ATICS® ≥ 100 A | B98021001

Downloads / Documents
CE declarations of conformity, manuals, quickstarts and datasheets available for ATICS®-…-DIO (selected languages).

Technical specifications (key points)

• Functional safety: SIL 2
• Certification: TÜV SÜD
• Versions: 2-pole and 4-pole; rated currents AC 63 A, 80 A, 125 A, 160 A
• Integration: switch-disconnector and control electronics in one device
• Maintenance: plug connectors and optional bypass for uninterrupted testing and replacement
