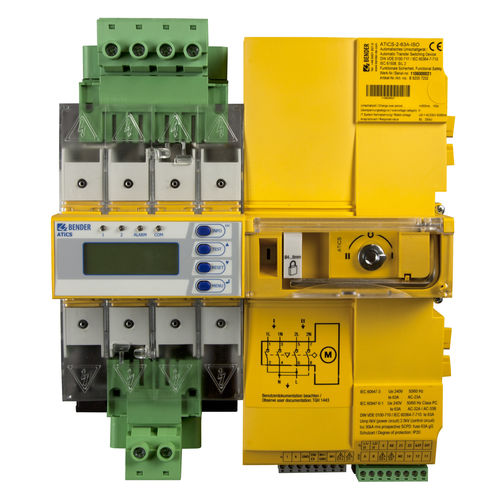

Automatic transfer switch ATICS®-…-ISO

manualpanel-mountemergency power supply

Overview
ATICS®-…-ISO transfer switching devices provide automatic changeover between two independent power supplies and continuous monitoring of unearthed (IT) power systems. The power section and control electronics are integrated in one flat, compact enclosure for space-saving installation in control cabinets and reduced wiring complexity. The device is designed according to functional safety requirements (SIL 2).

Key features

• Integrated switch-disconnector and IT-system monitoring in a single unit
• Designed for safety power supplies with functional safety SIL 2 (EN 61508)
• Compact, flat enclosure for control-cabinet mounting
• Plug connectors on all wiring and optional bypass switch for testing and replacement without power interruption
• Manual on-device operation and mechanical locking
• Communication and parameterisation options for monitoring and configuration

Installation and commissioning

• Space-saving design simplifies retrofit and new installations
• Reduced wiring effort and faster commissioning

Safe operation

• Robust switch-disconnector contacts
• Mechanical interlock and local manual operation
• Certified to EN 61508 SIL 2 (TÜV SÜD)

Uninterrupted maintenance

• Plug connectors and optional bypass switch enable testing and servicing without interrupting the supply

Applications

• Suitable for safety-critical environments such as Group 2 medical locations (operating theatres, intensive care) where redundant supplies and unearthed (IT) system monitoring increase operational safety and availability.

Variant(s)
Type | Rated operational current I_e | Rated operational voltage U_e | Art. No.
ATICS-2-63A-ISO | AC 63 A | AC 240 V | B92057202
ATICS-2-63A-ISO-ES* | AC 63 A | AC 240 V | B92057206
ATICS-2-63A-ISO-400 | AC 63 A | AC 415 V | B92057204
ATICS-2-80A-ISO | AC 80 A | AC 240 V | B92057203
ATICS-2-80A-ISO-ES* | AC 80 A | AC 240 V | B92057207
ATICS-2-80A-ISO-400 | AC 80 A | AC 415 V | B92057205

Optional accessories
Type | Description | Art. No.
STW2 | Measuring current transformer (load current monitoring IT system), I_e: AC 50 A | B942709
STW3 | Measuring current transformer (short-circuit monitoring) for ATICS® < 100 A; I_e: AC 100 A | B98021000
SWL-100A | Measuring current transformer (load current monitoring IT system), I_e: AC 100 A | B98021002
ATICS-BP-2-63A-SET | Bypass switch set (I_e: AC 63 A) comprising bypass switch, auxiliary contact, bridge, terminal cover, LEDs for DIN rail | B92057252
ATICS-BP-2-80A-SET | Bypass switch set (I_e: AC 80 A) comprising bypass switch, auxiliary contact, bridge, terminal cover, LEDs for DIN rail | B92057253
EDS151 | Insulation fault locator | B91080101
ESS3680 | Transformer 3.68 kVA, AC 400 V / 230 V | B924744
ATICS-ES | Energy storage device for ATICS-2-63A-ISO-ES and ATICS-2-80A-ISO-ES | B72057255
AN412 | Power supply unit DC 12 V for ATICS-ES energy storage device | B924150

Technical specifications

• Functional safety: SIL 2 (designed and certified according to EN 61508)
• Certification: TÜV SÜD certified in accordance with EN 61508 SIL 2 and DIN VDE 0100-710
• Integrated transfer switching and IT-system monitoring
• Compact flat enclosure for control cabinet installation
• Plug connectors and optional bypass switch for maintenance without supply interruption
• Manual local operation, mechanical locking and robust switch contacts
• Available rated currents: AC 63 A and AC 80 A; available voltages: AC 240 V and AC 415 V
• Optional measuring current transformers, bypass sets, insulation fault locator, energy storage and auxiliaries
