Visualization software POWERSCOUT®

web-based data acquisition/analysishistoric data analysisdata analysis

Overview
POWERSCOUT® is a web-based software solution for centralized electrical monitoring, long-term analysis and visualisation of measured values. It automatically and continuously records measured data from measuring and monitoring devices, providing a complete dataset of an installation and enabling early detection of malfunctions.

Key benefits

• Simple setup
• Long-term analysis and data retention

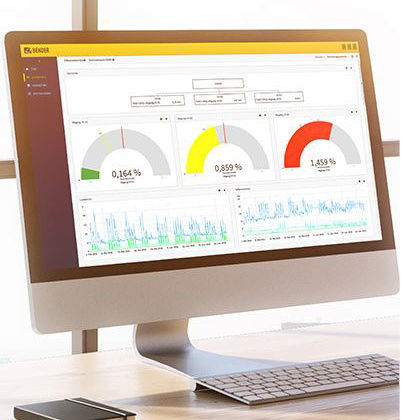

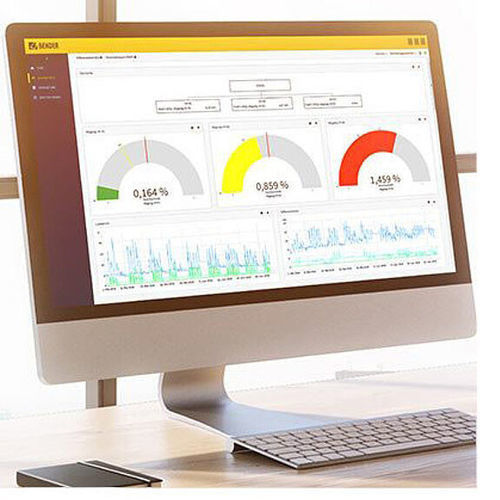

• Comprehensible visualisations (dashboards, heatmaps)
• Automated report generation and distribution
• Monitoring across multiple locations
• Central testing and monitoring of electrical installation and equipment (IEC 60364-6)
• No local software installation required

Features

• Data resolution adjustable according to bus-system rate
• Dashboard management
• Tree-view management
• Report management with automated sending
• Integration via CP9xx(-I), COM465IP and COM465DP
• Integration of third-party devices
• Web-based application accessible from all device types

Languages & user features

• Available languages: English, German
• User and role management
• Supported browsers: Chrome, Firefox, Internet Explorer

Applications

• Residual current
  Commissioning wizard creates dashboards to evaluate residual current levels and calculates the ratio of residual to load current.
• Stray currents
  Wizard highlights system parts with excessive stray currents for targeted investigation.
• Central earthing point
  Wizard visualises current at the central earthing point and the corresponding phase current.
• Neutral conductor
  Commissioning wizard evaluates neutral currents and flags excessive values.

POWERSCOUT® Variant(s)
Typ | Art No.
POWERSCOUT Project | B95061503 (Hosted)

Downloads (selection)
Datasheet POWERSCOUT® (product datasheet available)
Product brochure POWERSCOUT® (product brochure available)
Quickstart guides for POWERSCOUT® Hosted (documents available)

Technical specifications

• Product name / model: POWERSCOUT®
• Variant: Hosted (POWERSCOUT Project – Art No. B95061503)
• Integration: CP9xx(-I), COM465IP, COM465DP, and third‑party devices
• Platform: Web-based application (no local installation required)
• Supported browsers: Chrome, Firefox, Internet Explorer
• Languages: English, German
• Functionality: dashboards, tree views, report management, automated report sending, long-term data storage and visualisation, central testing and monitoring per IEC 60364-6
• Example documentation identifiers: D00235 (datasheet), D00420 / D00317 (quickstarts), POWERSCOUT_B_en (brochure)
