Terminal with touch screen COMTRA ® CP9 series

panel-mountIP54fanless

Overview

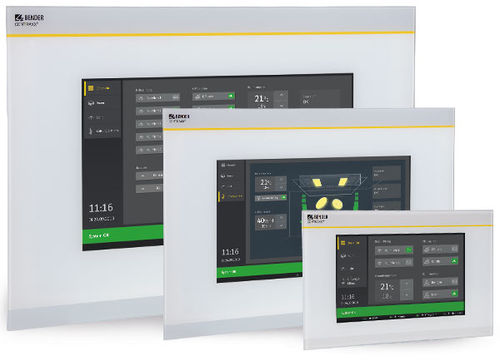

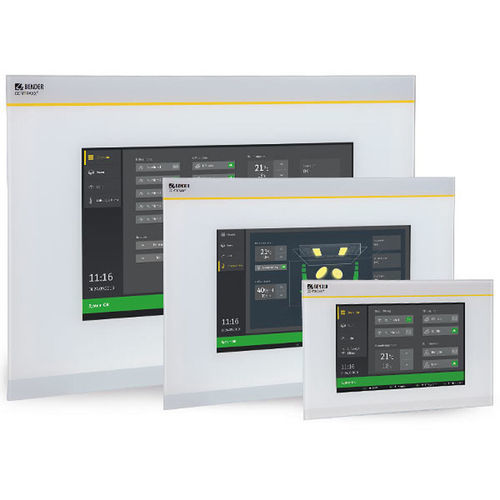

Indicator and control panels provide visual and acoustic alarms and convert system data into clear operating instructions. The COMTRAXX® CP9xx series is a touch-sensitive control panel for medical, industrial and specialised buildings offering graphical status display, alarm notification and integration with external subsystems.

Key features

• Touch-sensitive monitoring and control centre
• Easy integration of Bender and third-party components
• Display sizes: 7", 15.6", 24" with tempered, anti-reflective glass
• Front protection IP54 — easy to clean and disinfect
• Screwless mounted front plate and fanless silent operation
• Graphical integration of building plans and photo-quality status display
• Simple conversion and expansion with minimal service interruptions
• Optional PoE support for CP907

Applications

• Monitoring, operation and display of Medical Isolated Power Systems (IPS)
• Supply systems for medical gases
• Ventilation and air-conditioning systems
• Room and operating-theatre lighting
• Special power supply systems (BSV / UPS)
• Integration with systems from other manufacturers

Variants (complete devices)
Type | Display Size | Power Supply | Device Dimensions (W x H x D) | Weight | Display Unit (glass, tempered) | Art.*
CP907 | 7" (17.6 cm) | DC 24 V, < 15 W (PoE possible) | 226 x 144 x 78 mm | 1.1 kg | white | B95061080
CP907 (without flush-mounting enclosure) | 7" (17.6 cm) | DC 24 V, < 15 W (PoE possible) | 226 x 144 x 78 mm | 0.9 kg | white | B95061093
CP915 | 15.6" (38.6 cm) | AC 100…240 V, < 30 W | 505 x 350 x 92 mm | 6.1 kg | white | B95061081
CP915 (grey) | 15.6" (38.6 cm) | AC 100…240 V, < 30 W | 505 x 350 x 92 mm | 6.1 kg | grey | B95061085
CP924 | 24" (61.0 cm) | AC 100…240 V, < 55 W | 654 x 441 x 100 mm | 9.1 kg | white | B95061083
CP924 (grey) | 24" (61.0 cm) | AC 100…240 V, < 55 W | 654 x 441 x 100 mm | 9.1 kg | grey | B95061084

Components separately
Device series | Type | Art. No.*
CP907 | Flush-mounting enclosure | B95100140
CP915 | Display unit white / Display unit grey | B95061112 / B95061113
CP924 | Display unit white / Display unit grey | B95061115 / B95061116

Optional accessories

• CP907 surface-mounting enclosure — Art.-No. B95061915
• CP9xx replacement plug connector kit — Art.-No. B95061910
• CP9xx suction lifter (for removing the display; CP915 and CP924) — Art.-No. B95061911

Scope of delivery
Display unit, flush-mounting enclosure including mounting plate with electronics, CP9xx connecting cable and plug connector kit.

Technical specifications

• Display sizes: 7", 15.6", 24"
• Display glass: tempered, anti-reflective
• Ingress protection: IP54 (front)
• Operation: touch-sensitive user interface with clear menu structure and interactive imagery
• Acoustic and visual alarm outputs
• Fanless silent operation
• Integration capabilities: graphical building plans and external subsections (e.g. charging stations, intercom)
• Power consumption by model: CP907 — DC 24 V, <15 W (PoE possible); CP915 — AC 100…240 V, <30 W; CP924 — AC 100…240 V, <55 W
• Dimensions / weight by model: see Variants section
