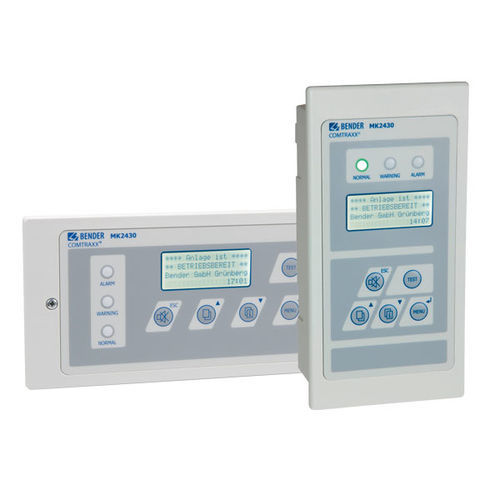

Alarm annunciator for medical applications COMTRAXX® MK2430

remote

Overview
The universal alarm indicator and test combination COMTRAXX® MK2430 provides visual and audible indication of alarm, warning and status messages from Bender systems (EDS, RCMS, MEDICS) and compatible third-party equipment. The backlit LC clear-text display (4 x 20 characters) shows predefined and programmable message texts. Bus communication links the MK2430 with changeover and monitoring modules. The programmable TEST button enables verification of IT system monitoring. During normal operation the MK2430 indicates system readiness. The MK2430-11 variant offers 12 digital inputs for external signals (e.g. medical gas systems, UPS).

Key features

• Display of operating status, warning and alarm messages per DIN VDE 0100-710 and IEC 60364-7-710
• Backlit LC clear-text display (4 x 20 characters)
• Predefined standard texts in 20 languages and 200 freely programmable message texts
• Bus technology for communication with changeover and monitoring modules
• Acoustic alarm with acknowledge/mute function
• Programmable TEST button and menu parameterization (German/English)
• History memory with real-time clock storing up to 250 events
• Suitable for flush and surface mounting; horizontal variant available (MK2430H-12)

Applications

• Visual and audible indication of alarm messages from Bender EDS, RCMS and MEDICS systems
• Display and visualization of operating status, warnings, alarms and measured values
• Integration with BMS for operation and parameter setting (e.g. threshold values)
• Recording and display of messages from other technical equipment via digital inputs (MK2430-11)

Variants
MK2430-11 | 12 digital inputs / 1 relay output | Flush-mounting | Enclosure included | B95100001
MK2430-12 | -- | Flush-mounting | Enclosure included | B95100002
MK2430H-12 | -- | Flush-mounting, horizontal | Not included | B95100024

Optional accessories
TMK-Set V4.xx | Software (download)
TMK-History V3.xx | Software (download)
USB driver software for MK2430, MK800 and TM800 | Software (download)
MK2430 mounting kit, complete | B95101000
Flush-mounting enclosure | B923710

Downloads

• CE Declaration of Conformity (MK2430) - PDF
• Quickstart (MK2430) - PDF
• Manual (MK2430) - PDF
• Datasheet (MK2430) - PDF

Technical specifications

• LC text display: 4 x 20 characters, backlit
• Languages: predefined standard texts in 20 languages
• Programmable texts: 200 freely programmable message texts
• Inputs/outputs: MK2430-11 = 12 digital inputs and 1 relay output; other variants: see Variants
• Alarm: acoustic alarm with mute/acknowledge function
• History memory: real-time clock, stores up to 250 warning and alarm messages
• Bus connection for communication with changeover and monitoring modules
• Mounting: suitable for flush and surface mounting; horizontal variant available
• Standards: IEC 60364-7-710 / DIN VDE 0100-710
