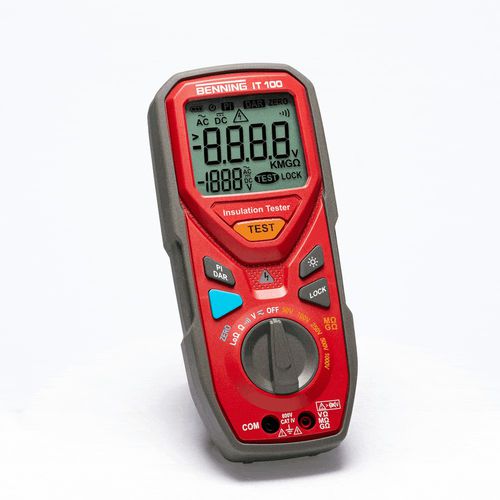

Portable insulation resistance meter IT 100

Multifunctional measuring device for numerous applications in electrical installations and the electrical industry Measuring functions low-impedance resistance of protective conductor and equipotential bonding conductor connections (testing current: 200 mA) insulating resistance with testing voltages of 50 V, 100 V, 250 V, 500 V and 1000 V resistance measurement with a testing current of 200 mA for testing protective conductor connections with null balance of the measuring leads continuity test with buzzer voltage measurement measurement of polarization index (PI) and dielectric absorption rate (DAR) Features combination of numerous measuring functions in one device indication of testing voltage and external voltage via red LED test function for checking the internal fuse automatic prevention of the test in case of external voltage compact and convenient housing design rubber protection frame for industry use in harsh environments extra large LC display with background lighting Scope of delivery BENNING IT 100 with high-quality carrying case, rubber protective frame, set of 4 mm measuring leads and measuring probes, alligator clips and batteries
