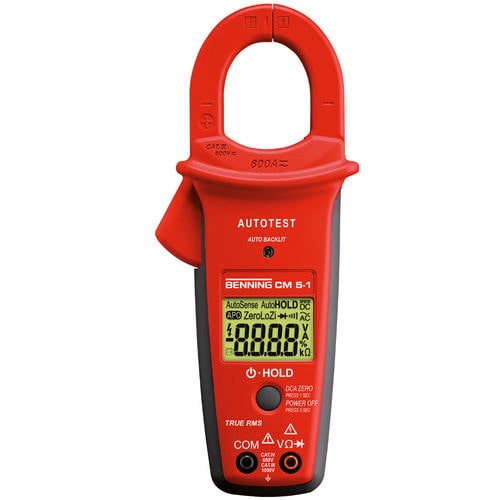

Digital clamp multimeter CM 5-1portable1000 V600 V
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 600 V, 1000 V
- Max current
- 600 A
- Safety rating
- cat IV
- Additional features
- with data logger
- Applications
- industrial
- Other characteristics
- true RMS
- Max DC voltage
Max.: 1,000 V
Min.: 0.7 V
- Max AC voltage
Max.: 750 V
Min.: 1.3 V
- Max DC current
Max.: 600 A
Min.: 0.9 A
- Max AC current
Max.: 600 A
Min.: 0.9 A
- Max resistance measure
Max.: 10,000 Ohm
Min.: 1 Ohm
- Length
215 mm
(8.46 in)- Width
85 mm
(3.35 in)- Height
51 mm
(2.01 in)- Weight
360 g
(12.7 oz)
Description
safe and easy operation – measuring errors due to incorrect measuring range selection are excluded
short response time due to 5 scanning values per second
voltage measurement with low input impedance (LoZ) to suppress capacitively/inductively induced voltages
LC display and background light
compact protective case included
