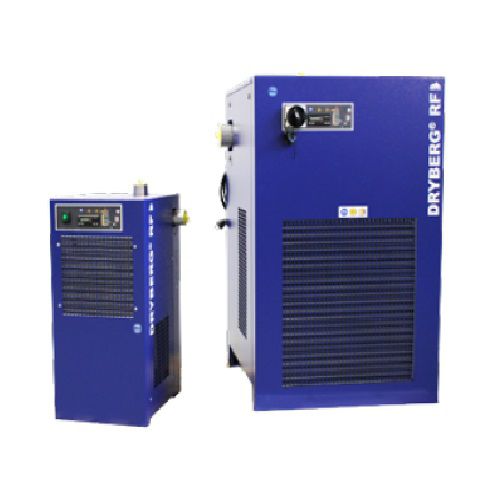

Refrigerated compressed air dryer DRYBERG® RF
two-stagehigh-performancehigh-pressure

Refrigerated compressed air dryer - DRYBERG® RF - BERG Kompressoren GmbH - two-stage / high-performance / high-pressure
Refrigerated compressed air dryer - DRYBERG® RF - BERG Kompressoren GmbH - two-stage / high-performance / high-pressure
Add to favorites
Compare this product

Characteristics

Technology
refrigerated
Number of stages
two-stage
Other characteristics
high-quality, high-performance, high-pressure
Capacity

Min.: 72 m³/h
(2,542.66 ft³/h)

Max.: 6,624 m³/h
(233,924.35 ft³/h)

Working pressure

Min.: 4 bar
(58.02 psi)

Max.: 14 bar
(203.05 psi)

0.21 bar
(3.05 psi)

Motor power

Min.: 0.21 kW
(0.29 hp)

Max.: 10.5 kW
(14.28 hp)

Operating temperature

Min.: 25 °C
(77 °F)

Max.: 55 °C
(131 °F)

Ambient temperature

Min.: 2 °C
(35.6 °F)

Max.: 45 °C
(113 °F)

Weight

Min.: 28 kg
(61.7 lb)

Max.: 1,100 kg
(2,425.1 lb)

Dew point

3 °C
(37.4 °F)

Description

Refrigeration Dryer with Super Energy Saving (DRYBERG® RF) Refrigerated compressed air dryers with Energy Saving Impulse Technology and Thermal Mass Refrigeration Dryer DRYBERG® RF, the new generation of energy-saving Refrigeration dryers, We not only renew its product offering for the compressed air treatment but also reinterprets the concept of thermal storage operation, that made the international success of the DE Hybrid dryers. The new Impulse Technology offers important advantages in terms of energy-saving, reliability, and operating costs as the DRYBERG® RF is able to adapt itself to the real needs of the compressed air system. The regulation system of the dryer controls the dryer operation granting the most energetically effective method of compressed air drying, achieving high energy saving and ensuring at the same time an excellent dew point stability also in dynamic conditions.
