Desiccant compressed air dryer DRYBERG® ADP
two-stagehigh-performancehigh-pressure

Desiccant compressed air dryer - DRYBERG® ADP - BERG Kompressoren GmbH - two-stage / high-performance / high-pressure

Add to favorites

Compare this product

Go to the BERG Kompressoren GmbH website for more information

Characteristics

Technology

desiccant

Number of stages

two-stage

Other characteristics

high-quality, high-performance, high-pressure

Capacity

Min.: 400 m³/h
(14,125.87 ft³/h)

Max.: 9,500 m³/h
(335,489.33 ft³/h)

Working pressure

7 bar
(101.53 psi)

Motor power

1.3 kW
(1.77 hp)

Weight

Min.: 1,200 kg
(2,645.5 lb)

Max.: 9,000 kg
(19,841.6 lb)

Dew point

-40 °C
(-40 °F)

Description

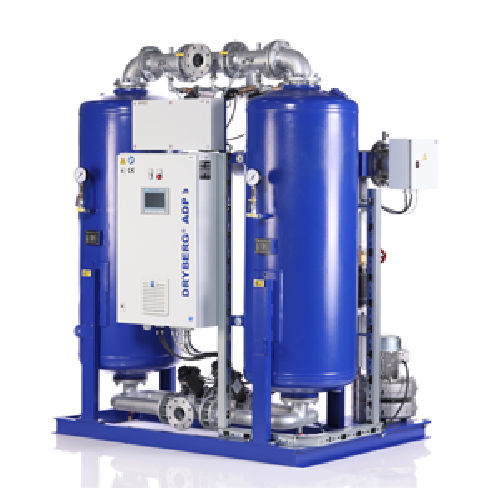

DRYBERG® ADP, Heat-regenerated adsorption air dryers Heat-regenerated adsorption air dryers (DRYBERG® ADP) Heat-regenerated adsorption dryers DESCRIPTION ADP adsorption air dryers are designed for continuous separation of moisture from compressed air. DRYBERG® ADP dryers have two columns that work alternately. The adsorption takes place under pressure in the first column while the second column regenerates. The ADP-type dryer is suitable for applications where low PDP is required in hotter and wetter environments and where compressed air can be used for cooling. A dryer consists of two desiccant-filled columns, fans, heater, LCD display controls, valves, gauges, and a support structure. A proven and robust design allows for efficient and reliable operation, quick installation and easy maintenance.
