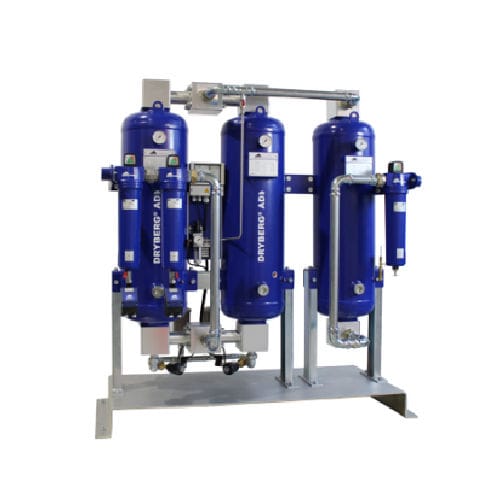

Heatless desiccant compressed air dryer DRYBERG® AD-CT
three-stagetwo-stagehigh-performance

Heatless desiccant compressed air dryer - DRYBERG® AD-CT - BERG Kompressoren GmbH - three-stage / two-stage / high-performance

Add to favorites

Compare this product

Go to the BERG Kompressoren GmbH website for more information

Characteristics

Technology

heatless desiccant

Number of stages

two-stage, three-stage

Other characteristics

high-quality, high-performance, high-pressure

Capacity

Min.: 150 m³/h
(5,297.2 ft³/h)

Max.: 1,200 m³/h
(42,377.6 ft³/h)

Working pressure

Min.: 4 bar
(58.02 psi)

1,500 bar

Max.: 16 bar
(232.06 psi)

Weight

Min.: 251 kg
(553.4 lb)

Max.: 1,366 kg
(3,011.5 lb)

Dew point

-40 °C
(-40 °F)

Description

DRYBERG® AD / AD-CT, Cold Adsorption Dryer with Carbon Tower DRYBERG® AD 20 - 110 The small and compact cold adsorption dryer DRYBERG® AD20-110 has been designed and manufactured in Germany to separate water moisture from compressed air when reducing the dew point in the system required up to -40°C up to -70°C. DRYBERG® AD 150 - 4000 DRYBERG® AD150-4000 is medium and large size adsorption dryers are designed for continuous separation of water vapour from the compressed air thus reducing the pressure dew point up to -40°C or even -70°C. DRYBERG®️ AD - CT, Adsorption Dryer with oil free systems DRYBERG® AD150-4000CT is supreme cold adsorption dryer with a active carbon tower as complete oil-free package to provide the class 1.2.0 according to ISO8573-1.
