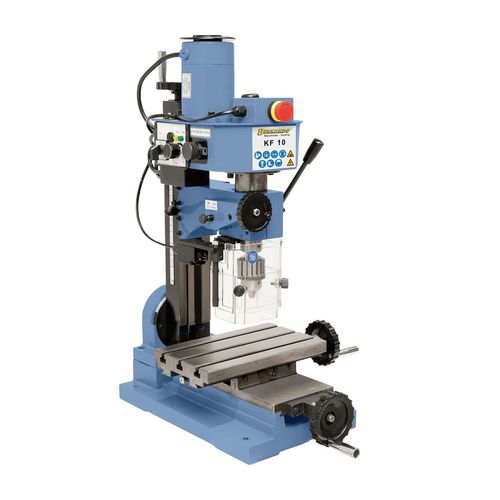

Vertical drilling and milling machine KF 10

column type2-axisfor steel

The compact construction of the KF 10 drilling and milling machine makes this model ideal for amateurs and craftsmen. Properties Numerous application possibilities, such as face milling, slotting etc. Dovetail guiding in all axes, adjustable via gibs Handwheel with scale allows spindle fine feed Serial with right and left spindle rotation Precise bearings ensure high concentricity of spindle Electronic stepless drive for precise results Scale allows easy read of drill depth Solid and vibration-free grey cast-iron machine base Technical specifications Face mill capacity max. 20 mm End mill capacity max. 10 mm Distance spindle to column 140 mm Distance spindle to table 80 - 260 mm Spindle stroke 30 mm Spindle taper MT 2 Table size 240 x 145 mm Travel (x / y) 180 / 130 mm Height adjustment of mill head 180 mm Mill head tiltable -45° to +45° T-slot size 8 mm Voltage 230 V Machine dimensions (W x D x H) 420 x 343 x 720 mm Standard accessories Drill chuck 1 - 10 mm / B 12 Drill chuck arbor MT 2 / B 12 Height adjustable protective cover 4 T-nuts M 6 Tools
