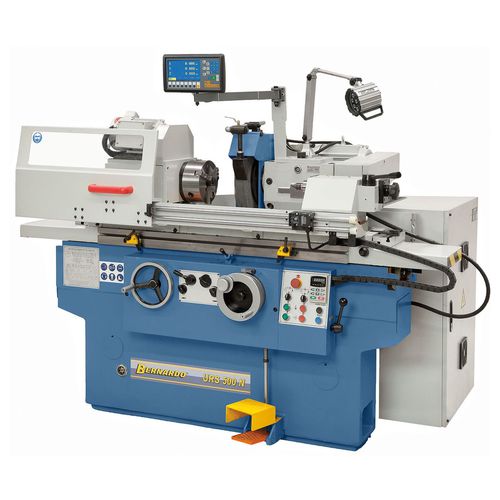

Cylindrical grinding machine URS 500 Nworkpiece2-axisuniversal

cylindrical grinding machine
cylindrical grinding machine
cylindrical grinding machine
cylindrical grinding machine
cylindrical grinding machine
cylindrical grinding machine
cylindrical grinding machine
Add to favorites
Compare this product
indicative price

Characteristics

Type
cylindrical
Applications
workpiece
Other characteristics
2-axis, universal
Spindle speed

Min.: 25 rpm (157 rad.min-1)

Max.: 1,670 rpm (10,493 rad.min-1)

Description

The URS 500 N universal cylindrical grinding machine is suitable for outside grinding operations up to 200 mm in diameter. The machine comes complete with an inside grinding device to increase the application range significantly. Most commonly this model is used in machine construction, tool and mould shaping and in the production of small series. Properties Table can be tilted for conical grinding operations and scale allows adjustment to desired position Spindle stock can be swivelled 180° for inside grinding operations Main spindle is mounted hydro-dynamically – oil film prevents contact between spindle and bearing Longitudinal table guide and grinding spindle stock cross guide feature V- and flat guiding each Strong reinforcements and generously designed walls make the machine base resistant to temperature fluctuations and deformations Oil film between spindle and bearing reduces the vibrations to a minimum to achieve top results and high accuracy Stepless feed adjustment with selective programmable stop at end of each table movement Precisely adjusted spindle head and solid grinding spindle stock to achieve top processing results at various grinding operations Precisely polished and manually finished guideways in x- and y-axis Hydraulic or manual resetting of grinding spindle stock Longitudinal movement of table is either manually by handwheel or automatically by hydraulic feed Grinding spindle features bearings on both sides and adjustable sliding flat grids
