Electrician toolbox 8110-VDE

plasticlockable

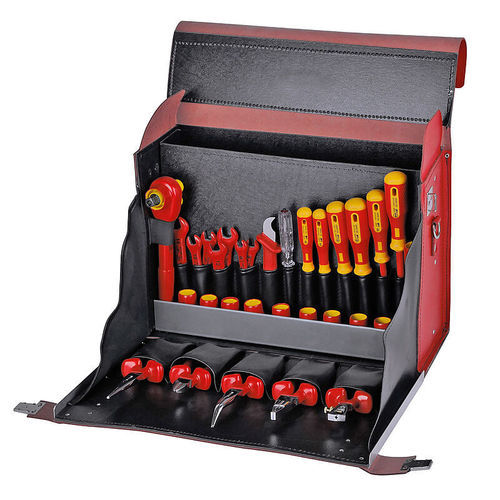

The Bernstein VDE tool case is a red cowhide leather tool case with a hinged front plate that provides quick access to tools. It contains a 33-piece VDE-insulated toolset approved for work under voltage up to 1000 V and offers pockets, a bottom tray and compartments for additional items such as safety gloves and documentation.

Key features

• Cowhide leather case in red signal color with hinged front plate for quick access
• Classic tool bag design with fold-out front flap and padded shoulder strap (shoulder strap with protection leather included)
• Two lockable fastenings and side eyelets for attaching the carrying strap; high-quality closure buckles
• Extensive VDE toolset with two-color multilayer dip insulation (red outer layer, yellow inner layer) for easy visual damage detection
• Insulated tools individually tested according to IEC 60900 / EN 60900 and approved for working under voltage up to 1000 V; insulations are REACH compliant and phthalate free
• Tools include open-end wrenches, ratchet, sockets, pliers, screwdrivers and more with VDE two-color handles

Content

• 8115-VDE leather tool case 35 empty pockets
• 1500-09 shoulder strap with protection leather black
• 4-344-VDE voltage tester slotted blade 3.5x0.7x110 mm
• 13-106-VDE side cutters 165 mm
• 13-207-VDE telephone pliers 205 mm serrated jaws straight with wire cutter
• 13-208-VDE telephone pliers 205 mm serrated jaws bent with wire cutter
• 13-708-VDE combination pliers 210 mm with serration
• 13-806-VDE wire strippers 165 mm with stop screw
• 14-652-VDE screwdriver slotted blade 3.5x100 mm
• 14-653-VDE screwdriver slotted blade 4.0x100 mm
• 14-654-VDE screwdriver slotted blade 5.5x125 mm
• 14-656-VDE screwdriver slotted blade 6.5x150 mm
• 14-658-VDE screwdriver slotted blade 8.0x175 mm
• 14-682-VDE screwdriver cross-recess PH1 Ø 4.5 mm
• 14-683-VDE screwdriver cross-recess PH2 Ø 6.0 mm
• 15-522-VDE cable stripping knife with hook blade
• 16-441-VDE socket 1/2 inch 10.0 mm
• 16-442-VDE socket 1/2 inch 11.0 mm
• 16-443-VDE socket 1/2 inch 12.0 mm
• 16-444-VDE socket 1/2 inch 13.0 mm
• 16-445-VDE socket 1/2 inch 14.0 mm
• 16-447-VDE socket 1/2 inch 17.0 mm
• 16-448-VDE socket 1/2 inch 19.0 mm
• 16-449-VDE socket 1/2 inch 22.0 mm
• 16-451-VDE socket 1/2 inch 24.0 mm
• 16-471-VDE reversible ratchet 1/2 inch
• 16-476-VDE extension 1/2 inch 125 mm
• 16-503-VDE single-ended open-jaw wrench 8.0 mm
• 16-504-VDE single-ended open-jaw wrench 9.0 mm
• 16-505-VDE single-ended open-jaw wrench 10.0 mm
• 16-506-VDE single-ended open-jaw wrench 11.0 mm
• 16-507-VDE single-ended open-jaw wrench 12.0 mm
• 16-508-VDE single-ended open-jaw wrench 13.0 mm
• 16-509-VDE single-ended open-jaw wrench 14.0 mm
• 17-523-VDE plastic clip with internal spiral spring

Technical specifications

• Product code: 8110-VDE
• Denomination: VDE tool case SAFETY (33 pcs)
• Material: Cowhide leather (red signal color)
• Dimensions: 440 x 175 x 310 mm
• Weight: 7500 g (loaded), empty weight: 3000 g
• Standards / approvals: Tools individually tested according to IEC 60900 / EN 60900; approved for working under voltage up to 1000 V
• Insulation: Two-color multilayer dip insulation (red outer, yellow inner) — REACH compliant, phthalate free
• Closures: 2 lockable fastenings
• Carrying comfort: Padded shoulder strap (included)
• Number of parts: Title refers to 33 pcs; source lists up to 35 positions (see content for details)
