Machine vice 9-205

handscrewprecision

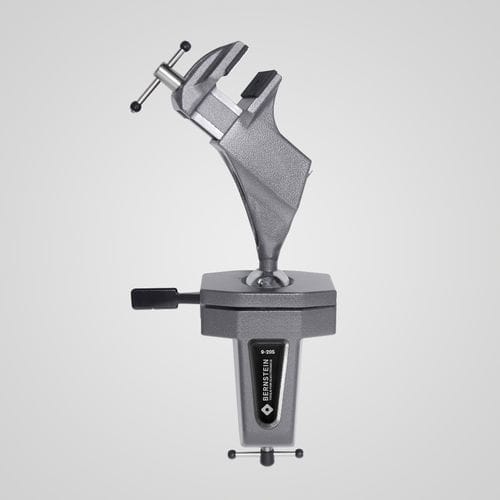

The 9-205 ball-joint vice SPANNFIX is a compact precision clamp-on vise providing 360° rotation and stepless locking for flexible positioning of clamped workpieces. It is designed for mounting to a workbench and for ergonomic working positions during drilling, sawing, grinding, milling and cutting.

Features

• Precision ball joint, 360° rotatable with stepless locking and quick-release action
• Quality product Made in Germany
• Clamp-on base for table thickness up to 80 mm
• 50 mm plastic jaws with grip (small vise)
• Clamping width 70 mm; depth 38 mm; clamping force approx. 1470 N
• Inclination ±45°
• Cast aluminum housing, powder-coated, dark gray metallic; steel parts chrome-plated and corrosion-resistant
• Spare parts: jaws, article 9-900-E50 (pair)
• Overall dimensions approx. 310 x 170 x 75 mm; weight approx. 1450 g

Applications / additional information

• Slight lever pressure allows stepless alignment of the clamped workpiece to any practical working position
• Individual height adjustment provides ergonomic posture for standing tasks (drilling, sawing, grinding, milling, cutting, etc.)
• Interchangeable jaws: 50 mm plastic jaws for the small vise and 100 mm steel jaws for the large vise
• Protective jaws available with felt, leather, cork or rubber covers to avoid scratches on sensitive workpieces
• Aluminum jaws with prisms are suitable for clamping pipes; jaw widths available from 50 to 150 mm
• The screw-on vise base can be fastened to workbenches, tables or base plates via four 9 mm through holes

Technical specifications

• Maximum torque: ball Ø 40 mm ≈ 24 Nm; ball Ø 60 mm ≈ 100 Nm
• Clamp base: suitable for table top thickness up to 80 mm
• Materials: cast aluminum parts powder-coated; steel parts chrome-plated and corrosion-resistant
• Adjustment screw on the lower ball seat to set movement from loose to very firm
• For safety-relevant parts: holding forces depend on application and physical conditions (laboratory results may differ in other environments)
