Machine vice 9-205-B

handinterchangeable jawsscrew

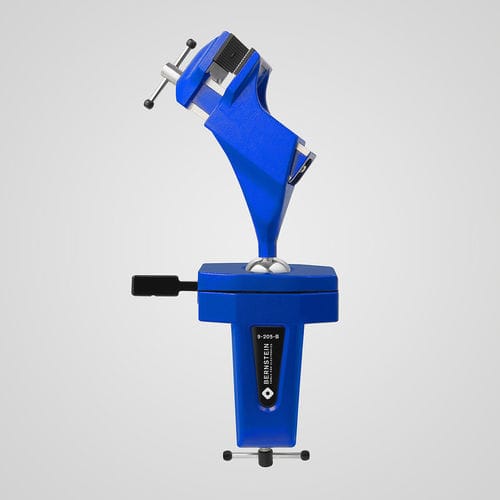

The SPANNFIX ball-joint vice is a precision rotatable 360° vise head designed for flexible clamping and ergonomic working positions. It offers stepless locking, a robust cast-aluminum construction and is made in Germany.

Features

• Precision ball joint rotatable 360°, steplessly lockable quick release
• Quality product Made in Germany
• For clamping to the workbench (table thickness max 80 mm)
• 50 mm plastic jaws with grip
• Clamping width 70 mm, depth 38 mm, clamping force 1470 N
• Inclination angle +/- 45°
• Cast aluminum, powder-coated, blue (RAL 5005)
• Spare parts: jaws, article 9-900-E50 (pair)
• Dimensions approx. 310 x 170 x 75 mm
• Weight 1450 g

Area of application
A slight lever pressure is sufficient to align the clamped workpiece steplessly into any reasonable working position, enabling ergonomic working while standing (drilling, sawing, grinding, milling, cutting, etc.). Interchangeable jaws: small vice uses 50 mm plastic jaws; the large vice uses 100 mm steel jaws. Protective jaws for clamping sensitive workpieces are available in felt, leather, cork and rubber. Jaw types with aluminum prisms are suitable for clamping pipes and jaw widths are available from 50 to 150 mm. The screw-on vice fastening can be connected to workbenches, tables and base plates via four 9 mm through holes.

Technical description
Maximum torque: ball Ø 40 mm ≈ 24 Nm; ball Ø 60 mm ≈ 100 Nm. Cast aluminum parts are powder-coated; steel parts are chrome-plated and rust-free. The adjusting screw on the lower seat of the ball allows the movement of the ball to be adjusted from loose to very firm. Note: holding forces may vary depending on specific application and physical conditions.

General information
The BERNSTEIN ball-and-socket vice has a continuously adjustable joint head that can be rotated 360° and tilted +/- 45°. The upper part of the vice can be tilted in any direction to enable work in front of or above the table. With a simple lever movement, the vice head is loosened in the tapered socket, aligned and clamped again.

Technical specifications

• Article number: 9-205-B
• Commercial name: SPANNFIX
• Maximum torque: ball Ø 40 mm ≈ 24 Nm; ball Ø 60 mm ≈ 100 Nm
• Materials: Cast aluminum (powder-coated, blue RAL 5005); steel parts chrome-plated, rust-free
• Adjusting screw: movement adjustable from loose to very firm on lower seat of ball
• Interchangeable jaws: small 50 mm plastic; large 100 mm steel; protective jaws in felt, leather, cork, rubber; aluminum prism jaws for pipe clamping; jaw widths 50–150 mm
• Vice fastening: screw-on clamp; can be connected via four 9 mm through holes
