Plastic tool set 2250

ESD tool kit ANTISTATIC is a portable, dissipative tool set for repair and maintenance of electrostatically sensitive components. The kit combines precision tools, a dissipative pouch and ESD accessories, enabling safe work at ESD workstations (EPA) in mobile environments.

Features

• CLASSICline pliers and cutters suitable for ESD applications.
• Mobile kit designed for work on electronic components with mobile personnel grounding.
• Pouch and tools include dissipative/conductive components compliant with ESD requirements.
• Complies with DIN EN 61340-5-1 and meets wrist grounding requirements according to BGFE.

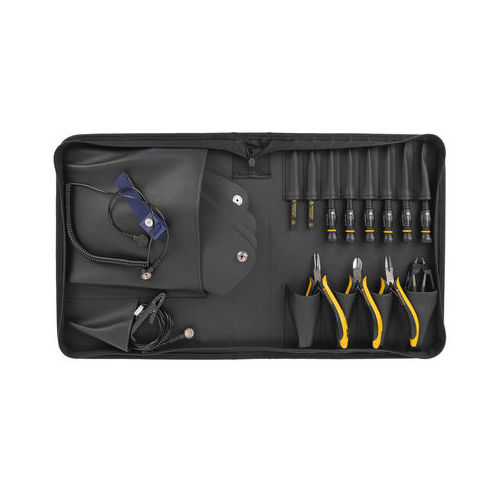

Contents

• 2221 ESD dissipative zip pouch, 14 empty compartments
• 2-620 PLCC extraction tool
• 3-601-15 ESD side cutter CLASSICline, 115 mm
• 3-632-15 ESD flat-nose pliers CLASSICline, smooth jaws, 120 mm
• 3-633-15 ESD long-nose pliers CLASSICline, smooth jaws, 120 mm
• 4-603 ESD slotted screwdriver, blade 1.5 x 0.25 x 60 mm
• 4-605 ESD slotted screwdriver, blade 2.0 x 0.4 x 60 mm
• 4-606 ESD slotted screwdriver, blade 2.5 x 0.4 x 60 mm
• 4-621 ESD Phillips screwdriver PH000
• 4-622 ESD Phillips screwdriver PH00
• 4-623 ESD Phillips screwdriver PH0
• 5-191 ESD plastic precision tweezers 120 mm, shape 2a, tip width 2 mm
• 5-192 ESD plastic precision tweezers 120 mm, shape F, tip width 3 mm
• 9-354-100 ESD bench mat 500 x 400 x 0.5 mm, with 2 press studs
• 9-342-1 ESD wrist strap
• 9-342-2 ESD coil cord for wrist strap, highly elastic, 2.4 m
• 9-343-1 ESD grounding lead 1 MOhm, 1500 mm (2DK 10/10)
• 9-353 ESD crocodile clip

Characteristics / Technical specifications

• Dimensions (pouch): 320 x 250 x 50 mm
• Weight: 1050 g (full), 520 g (empty)
• Surface resistance / conductivity of pouch & tools: 10^6 to 10^9 Ohm
• ESD bench mat: 500 x 400 x 0.5 mm (Art. No. 9-354-100)
• Wrist strap & coil cord: coil cord length 2.4 m (Art. No. 9-342-2)
• Grounding lead: 1 MOhm, length 1500 mm (Art. No. 9-343-1)
• Safety resistors: 2 x 1 MΩ (integrated)
• Standards / Safety: complies with DIN EN 61340-5-1; meets wrist grounding requirements according to BGFE
• Pouch material: dissipative synthetic leather with zipper and separate compartments (14 slots)
