Mechanic toolbox 6400

for electricianswith handleABS

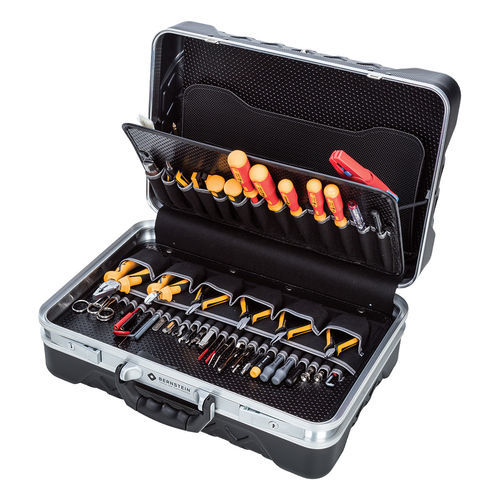

Tool case TECHNIK (article 6400) is a compact, highly stable hard-case designed for mobile use and working directly out of the case; it is made of impact- and fracture-resistant X-ABS with a non-slip diamond (rhomb) surface and holds a complete 78-piece tool assortment.

Features

• Hard case PROTECTION
• Rhomb (diamond) design for more stability made of X-ABS material
• Divisible floor tray
• Document compartment in the case lid
• Tool panels made of ConPearl — sturdy, washable and removable
• Locks, ergonomic handle, multiple profiled aluminium frame
• Hinges with case lid locking

Content

• 6415 tool case PROTECTION 58 empty pockets
• 1-909 engineer mirror with extension Ø 23 mm
• 2-126 ESD desoldering lever slotted at one ends
• 2-127 ESD tin knife pointed sharp blade
• 2-128 ESD tin scraper sharp chisel form
• 2-132 spring puller 175 mm
• 2-145 screwdriver with guide sleeve
• 2-161 scriber, magnetic lifter with telescopic slide-out
• 2-265-1 test prod red blade 1 mm
• 2-265-2 test prod black blade 1 mm
• 2-601 IC-tweezers 125 mm
• 3-132-16 side cutters 130 mm
• 3-601-15 ESD side cutters CLASSICline semi flush 115 mm
• 3-606-15 ESD side cutters CLASSICline flush 120 mm
• 3-631-15 ESD round nose pliers CLASSICline not serrated jaws 120 mm
• 3-632-15 ESD flat nose pliers CLASSICline not serrated jaws 120 mm
• 3-634-15 ESD snipe nose pliers CLASSICline not serrated jaws 120 mm
• 3-732-16 combinations pliers 170 mm with serration
• 4-261 screwdriver short cross-recess PH1
• 4-301 Liliput screwdriver slot blade 2.0(+/-0.2)x0.65x40 mm
• 4-311 screwdriver slot blade 2.8x0.6x80 mm
• 4-321 screwdriver short slot blade 4.0x0.8x25 mm
• 4-343-VDE voltage tester slot blade 3.0x0.7x60 mm
• 4-351 offset screwdriver slot blade 4.5x0.65x100 mm
• 4-366-AL watchmaker screwdriver cross-recess PH00
• 4-392 watchmaker screwdriver magazine 6 pcs (1.5-2.0-2.5-3.0-PH0 + handle)
• 5-006 component tweezers 145 mm jaws insulated
• 5-049 SMD tweezers 110 mm form 4 stainless steel
• 5-107 anatomical tweezers 150 mm form 22b
• 5-115 thermal tweezers 165 mm form R30 cross tweezers
• 5-117 anatomical tweezers 145 mm form 40 serrated
• 5-161 clamping scissors with teething jaws
• 5-181 wire scraper tweezers 125 mm
• 5-210 needle files set 6 pcs (flat, round, blunt, pointed, 3-edge, 4-edge)
• 5-301 scissors with teething
• 5-501 cable knife (open 200 mm)
• 6-750-3 double open-ended wrench 3 x 3.5 mm
• 6-750-4 double open-ended wrench 4 x 4.5 mm
• 6-750-5 double open-ended wrench 5 x 5.5 mm
• 6-750-6 double open-ended wrench 6 x 6.5 mm
• 6-750-7 double open-ended wrench 7 x 8.0 mm
• 6-750-9 double open-ended wrench 9 x 10.0 mm
• 6-820 wrench key set 8 pcs (1.5-2.0-2.5-3.0-4.0-5.0-5.5-6.0)
• 7-425 dust brush bristles width 25 mm
• 7-435 oiler with brass rotating seal 40 ml
• 7-508 steel tape measure 30 cm
• 7-511 digital caliper DIN862 precision 150 mm
• 7-616 bag-saw PUK in case
• 14-651-VDE screwdriver slot blade 2.5x75 mm
• 14-653-VDE screwdriver slot blade 4.0x100 mm
• 14-654-VDE screwdriver slot blade 5.5x125 mm
• 14-681-VDE screwdriver cross-recess PH0 Ø 3.0 mm
• 15-531-VDE automatic wire stripper (0.2-6.0 mm²) with stop screw
• 14-692-VDE screwdriver cross-recess PZ1 Ø 4.5 mm
• 6-320 Socket wrench set 36 pcs (Steel box with foam insert content: 1/4 inch sockets 6-kt 4.0-4.5-5.0-5.5-6.0-6.5-7.0-8.0-9.0-10-11-12-13, 1/4 inch PH screwdriver PH1-PH2, 1/4 inch screwdriver 4.0-4.5, 1/4 inch hexagon socket 3.0-4.0-5.0-6.0, 1/4 inch TX screwdriver TX20-TX25-TX27-TX30, 1/4 inch cardan joint, 1/4 inch extension 50 and 100 mm, 1/4 inch handle with strap, 1/4 inch push-in handle with drive square, 1/4 inch lever reversible ratchet 72 teeth 140 mm, Hexagonal key 1.25-1.5-2.0-2.5-3.0)

Area of application
The ideal case for storing your tools. Clearly arranged are the tools held securely in the nylon pockets. The locking mechanism ensures that the lid does not close when the tools are removed. This allows you to work out of the case without any problems. Due to the special shape of the diamond pattern, the case is non-slip and flat on any surface. The perfect companion for mobile use.

Technical description
The compact shape and textured surface give the case a high degree of stability and give it its unmistakable amber design. The use of X-ABS plastic with an extremely non-slip surface makes the case more resistant to external influences. The highly impact and fracture resistant material also makes the case airworthy, as it withstands the rough handling of checked baggage. The ergonomically shaped handle with recessed grips and the ratchet hinges with lid locking complete the picture of a highly functional and modern tool case.

Caractéristiques / spécifications techniques

• Model / article number: 6400
• Commercial name: tool case TECHNIK
• Number of pieces (assortment): 78 pcs (see parts list)
• Case material: X-ABS (impact- and fracture-resistant, non-slip surface)
• Tool panels: ConPearl (sturdy, washable, removable)
• Case design: rhomb (diamond) pattern, profiled aluminium frame, locks, ergonomic handle, hinges with lid locking
• Dimensions (L x W x H): 480 x 350 x 190 mm
• Weight empty: 4400 g
• Weight filled (approx.): 7100 g
