Hexagonal-head screw screwdriver bit set 4-970-A

for six-lobe screwsfor slotted screwsfor spanner screws

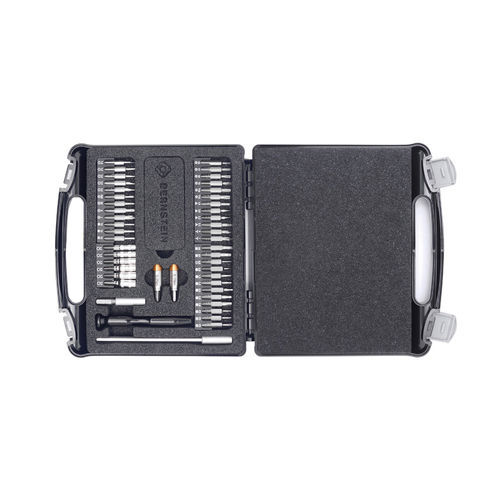

This 47-piece bit set (article 4-970-A) includes two preset torque adapters for very low torque applications, designed especially for electronics and mobile phone repair. The adapters give an audible click when the preset torque is reached and are intended to prevent overtightening; the set is supplied in a plastic case with foam insert.

Features

• Preset torque adapters with audible click indication to signal when torque is reached; prevents overtightening and is primarily suitable for manual operation.
• Patented adapter system: locks the ratchet via a hollow core shaft and a damping cylinder; no torque unlocking when loosening (note: approx. 30% higher torque when loosening).
• Supplied in a compact plastic case with foam insert for organised storage and transport.
• Suitable as a complete solution for electronic equipment, quick-change systems, robotic stations, aerospace, medical, or workbench applications where accurate low torque is required.
• When used with power tools, recommended maximum speed: 100 rpm and minimal click repetition.

Content

• 4-971 torque adapter 0.1 Nm for 4 mm bits
• 4-972 torque adapter 0.2 Nm for 4 mm bits
• 6-340-3 C4 bit set (42 pcs), consisting of:
• Slot: 1.0, 1.5, 2.0, 2.5, 3.0
• Cross-recess: PH000, PH00, PH0, PH1
• Torx: T3, T4, T5, T6, T7, T8, T9, T10, T15
• Hex: 0.9, 1.3, 1.5, 2.0, 2.5, 3.0
• Wrench: 2.5, 3.0, 3.5, 4.0, 4.5, 5.0
• Triangle: 1.6, 2.0, 2.2, 2.3
• Square: S0, S1
• Pentalobe: P2, P5, P6; SIM-Eject; Tri-Point: 0, 1
• 6-340-2 bit extension for 4 mm (5/32 inch) hex bits
• 6-340-1 ESD dissipative bit holder for 4 mm (5/32 inch) hex bits
• 4-564 bit adapter 1/4 to 4 mm bits, length 42.5 mm

Caractéristiques / spécifications techniques

• Model / designation: 4-970-A
• Preset torque values: 0.1 Nm and 0.2 Nm
• Tolerance: ±10% (factory certificate available on request)
• Durability: tolerance ±10% for at least 20,000 clicks; adapters tested according to DIN EN ISO 6789 (manually operated torque screwdriving tools)
• Adapter dimensions: Ø 8 mm, length 22 mm (without shank)
• Drive interface: 4.0 mm hex shank; magnetic 4.0 mm bit holder
• Extension: aluminum, includes 4 mm bit holder; 6-340-2 extension length 42.5 mm
• Materials: stainless steel and high-quality tool steel (adapter and bits); extension made of aluminum
• ESD handle / bit holder: dissipative, resistance approx. 10^6 to 10^9 ohm
• Recommended use: primarily manual; if used with power tools, max. 100 rpm
• Case dimensions: 175 x 160 x 45 mm
• Weight (set): 410 g
