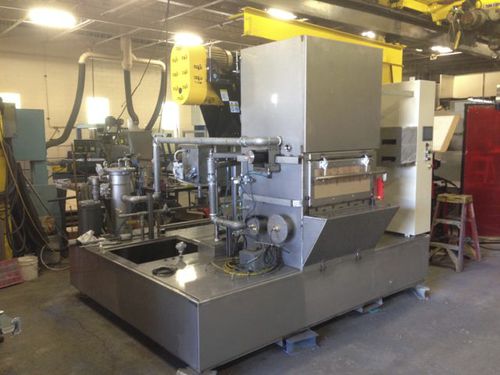

Solvent cleaning machine LC-360 series

waterimmersionautomatic

Automated Precision Aqueous Cleaning in a Lean Cellular Manufacturing Design The LC-360 Series of aqueous cleaning machines are a perfect solution for your cellular cleaning needs. Starting with a single basket system that takes up less than 20 square feet of plant floor space. These aqueous parts cleaning systems are built for lean manufacturing environments where manufacturing plant floor space is a premium (cleanroom, dry room, etc) but are built to clean even your toughest applications. LC-360 series can agitate parts via rock motion, rotate, spray from above, spray under immersion from within the solution bath, provide outstanding ultrasonic cleaning performance and dry your parts all with the push of a single button. Available in 4 standard sizes, all of the LC-360 series include two separate tanks for your wash and rinse solutions as well as an input for an external rinse (DI, RO, city tap, etc). Some of the units have the option of a third solution tank built in as well to be used for citric or nitric passivation or similar solutions. The sketch above shows the principle features of this precision cleaning system. The parts baskets are loaded from an ergonomic height and the operator presses the start button. Want a pre-wash spray before the processing tank fills? – no problem, the on-board PLC can be programmed to the precise cycles needed for your your parts – including separate recipes for each part. The LC-360 series can be set to rotate the basket(s) a full 360º, provide a rocking action from 10-60º, do both in sequence, or do neither depending on what you need for your specific parts.
