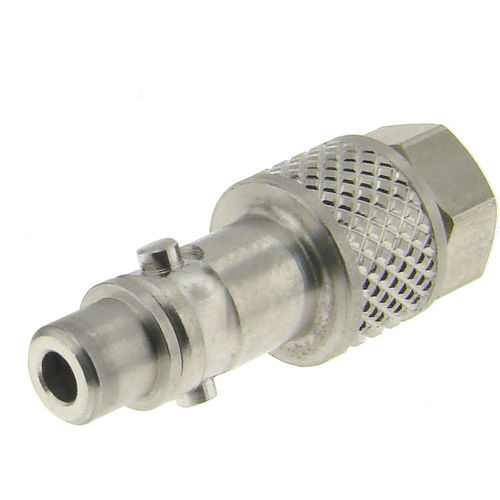

Hydraulic fitting QBE-303-.pneumaticquickstainless steel
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic, pneumatic
- Attachment
- quick
- Material
- stainless steel
- Other characteristics
- high-pressure, poppet, chemical-resistant, for the biotechnology industry, compact, for the food industry, wide temperature range, for the pharmaceutical industry, for chemical applications, corrosion-resistant, miniature, with shut-off valve
- Diameter
1.27 mm
(0.05 in)- Operating pressure
Max.: 207 bar
(3,002.28 psi)Min.: 0 bar
(0 psi)
Description
External half of Beswick series QB bayonet quick disconnect for high pressure applications. Internal end (QBI) will shut off when disconnected.
Max Pressure Rating:
3,000 psig while connected
Take caution when disconnecting lines under pressure since the external pin has no shut-off and will vent to atmosphere when disconnected. Due to this, our recommended maximum pressure for connecting or disconnecting the assembly is 120 psig.
Material: 303 Stainless Steel components.
Features
Quarter twist connection and disconnection.
QBE must be paired with a QBI half for a complete quick disconnect assembly.
