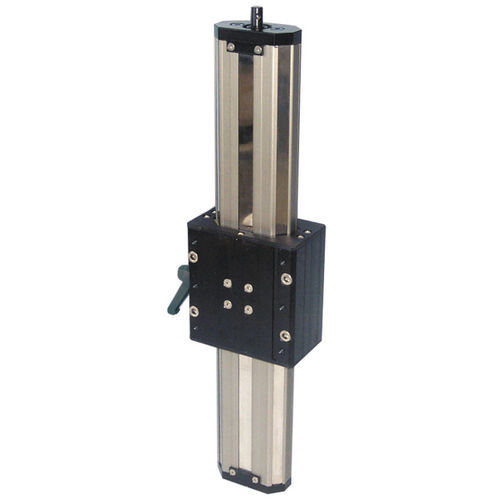

Manual positioner 2125

linear1-axisworm gear

Use: position adjustable on one axis with worm screw. Compared to the version with grooves it is more rigid and cleanable. State of supply profile in titanium-coloured anodised aluminium, trapeze screw and steel lead nut, 1 black anodised aluminium carriage, 1 black reinforced polyamide ratchet lever, AISI 304 stainless steel nuts and bolts. Characteristics: Tr20 worm screw, pitch 4 (1 handwheel turn = 4 linear mm). Positioning accuracy: ±0.3 mm/300mm*. Operation: STEP-BY-STEP (NO continuous operation). Max. 120 rpm; max time: 1 (min; on/off ratio=1/10 (max 10%). Maintenance-free: self-lubricating sliding components.
