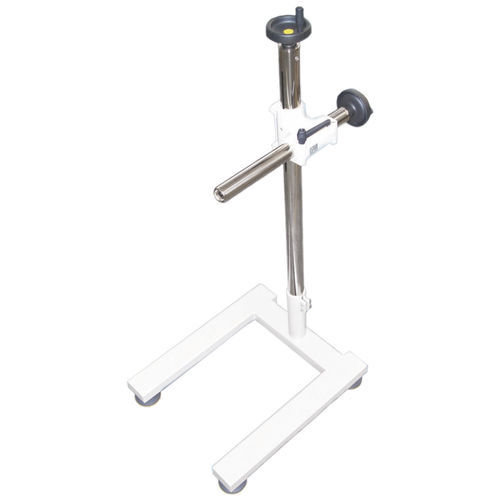

Manual positioner 3228

2-axis

Use: support adjustable on 2 axes with handwheel on worm screw for frequent adjustments for marking units. State of supply 2 nickel-plated steel columns (electrolytic nickel-plating), trapeze screw and lead nuts in burnished steel, brass sliding bearings, 1 aluminium carriage, 2 handwheel and 2 lever in reinforced polyamide, 1 steel pedestal, 4 polyamide feet with galvanised steel stem, galvanised steel nuts and bolts. Characteristics: Tr20 worm screw, pitch 4 (1 handwheel turn = 4 linear mm). Pedestal adjustable in height for handling with transpallets. Positioning accuracy: ±0.3 mm/300mm*. Operation: STEP-BY-STEP (NO continuous operation). Max. 120 rpm; max time: 1 (min; on/off ratio=1/10 (max 10%). Tightening torque 50Ø = 35 Nm; 60Ø = 50 Nm
