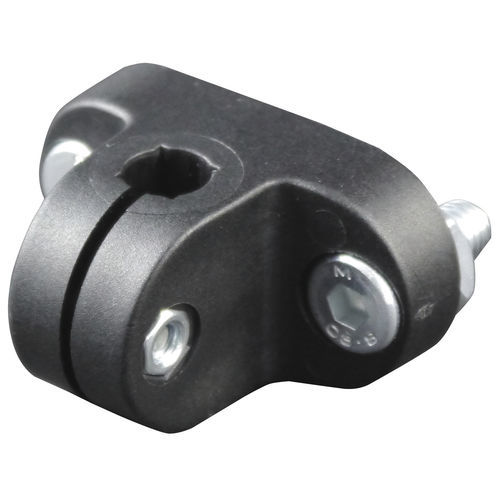

Square tube connector 855
roundplasticsteel

square tube connector
square tube connector
Add to favorites
Compare this product


Characteristics

Structure
round, square
Material
plastic, polyamide, steel
Diameter

Max.: 12 mm
(0.472 in)

Min.: 8 mm
(0.315 in)

Description

With plastic flange from Ø10 - or 8 to Ø12 - or 10 mm Use: connection of round or square bars parallel to the fastening plane; Tube tightening not constant over time. State of supply reinforced polyamide connector; 1 UNI 5931 socket head screw, 1 hexagon nut, 2 DIN 7984 socket head screws, 2 square nuts in galvanised steel, part no. 802. Standard pack: 50 pieces. Tightening torque 4.9 Nm (M5). Warnings: if combined with commercial 12ø round tubes, check that the tolerance corresponds to that of our Part 2012; if combined with 10x10 square rods available on the market, check that the tolerance corresponds to that of our Part 1789
